Manifold Valves

Manifold Valves

  • DLOK Manifold Valves are manufactured from SS 316, Duplex, Monel, and Hastelloy to suit a wide range of industrial applications.
  • Maximum working pressure up to 10,000 psig (689 bar).
  • Available in pipe-to-pipe, pipe-to-flange, and flange-to-flange configurations.
  • Standard PTFE gland packing, with optional Graphite (Graphoil) packing for temperatures up to 538°C (1000°F).
  • Non-rotating Vee Tip or Ball Tip design ensures smooth operation and reliable leak-tight shut-off.
  • Full heat code traceability for material identification and quality assurance.
  • NACE-compliant versions are available on request for sour service applications.
Enquiry Catalogue

Products

2 Valve Manifolds

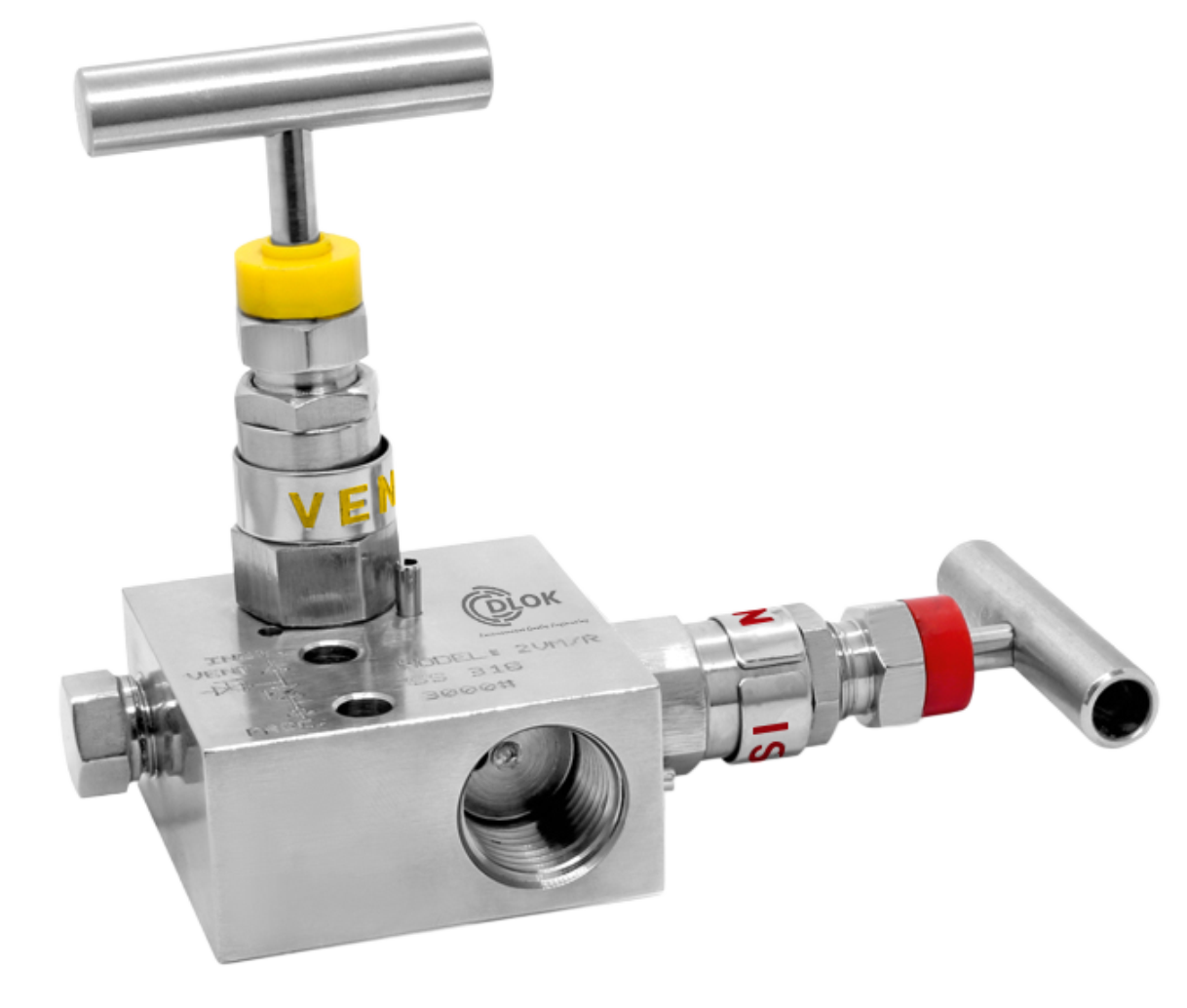

Pipe to Pipe (D-2VM-L) Pipe to Pipe (D-2VM-L)

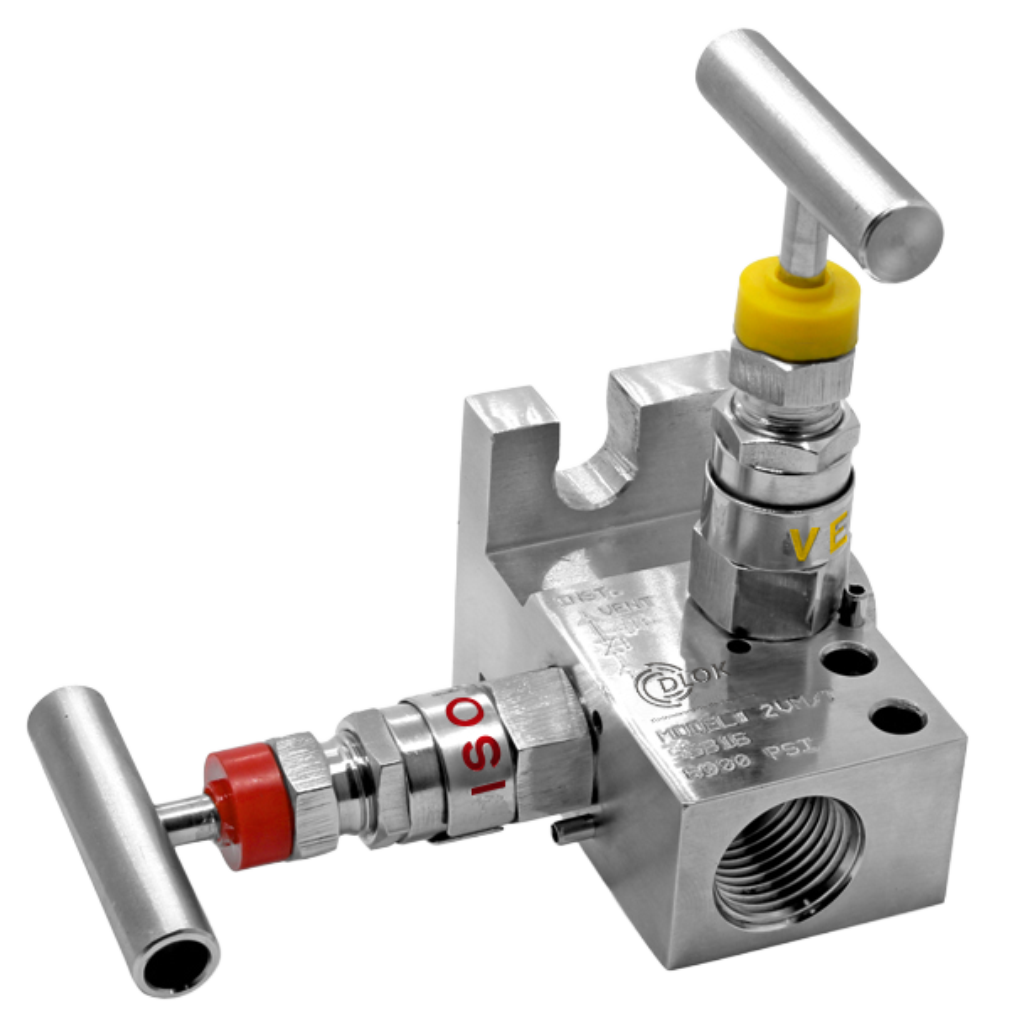

Pipe to Flange (D-2VM-T) Pipe to Flange (D-2VM-T)

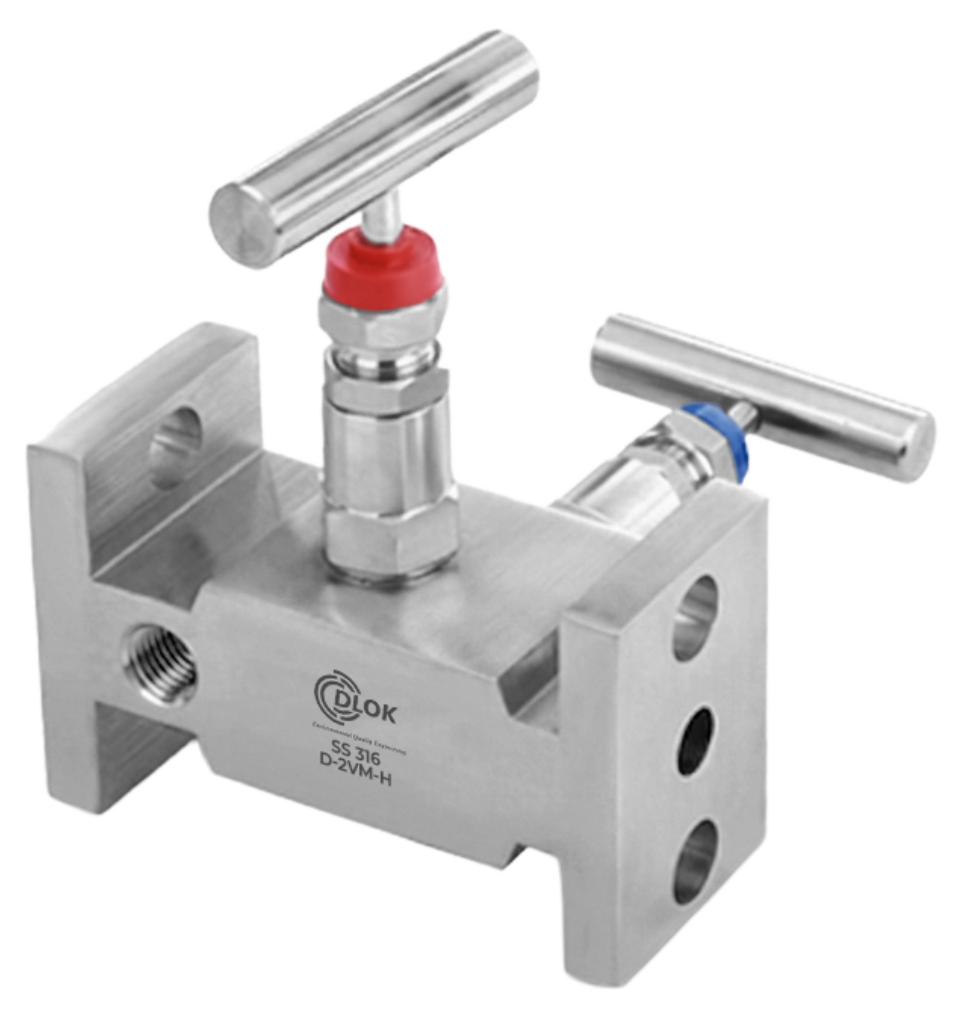

Flange to Flange (D-2VM-H) Flange to Flange (D-2VM-H)

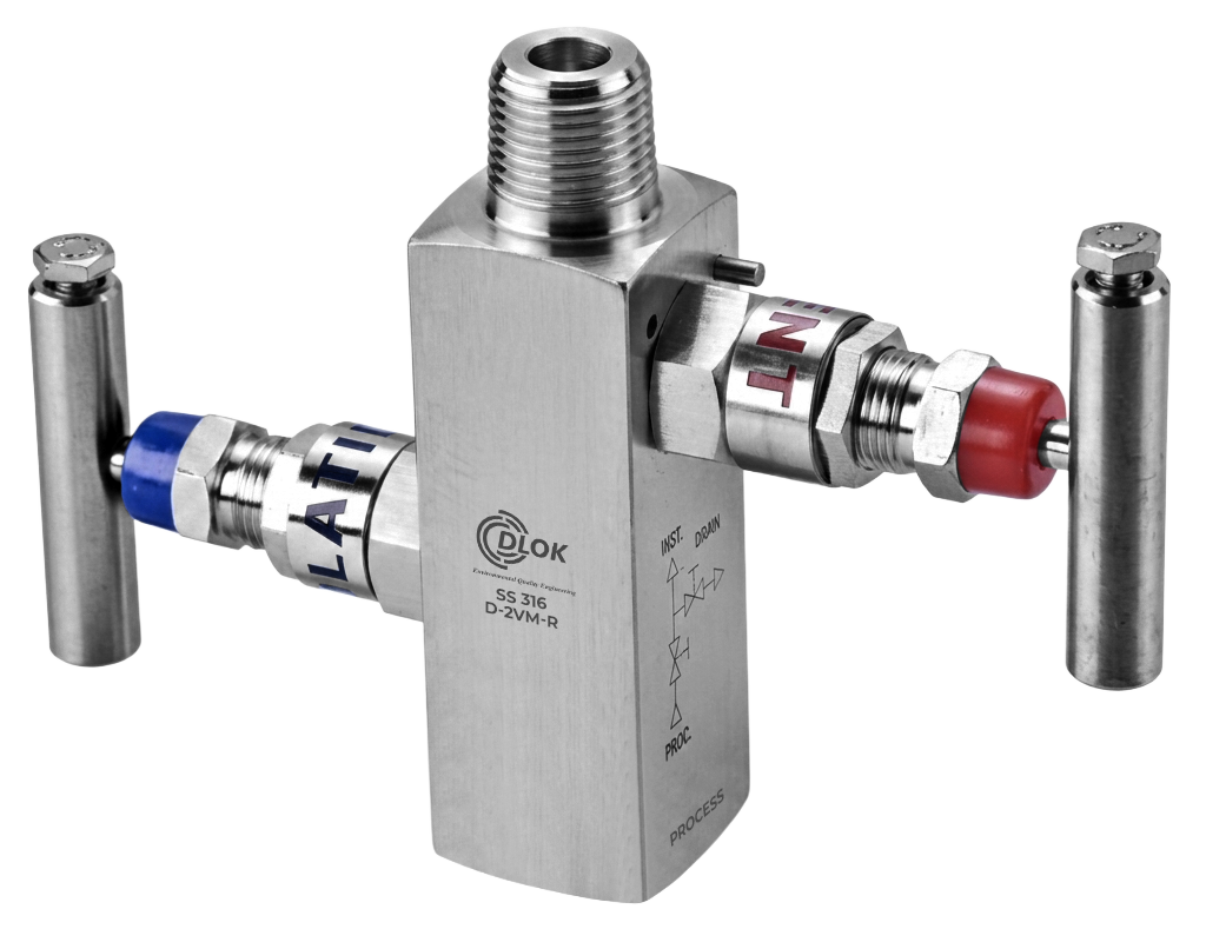

Remote Mount (D-2VM-R) Remote Mount (D-2VM-R)

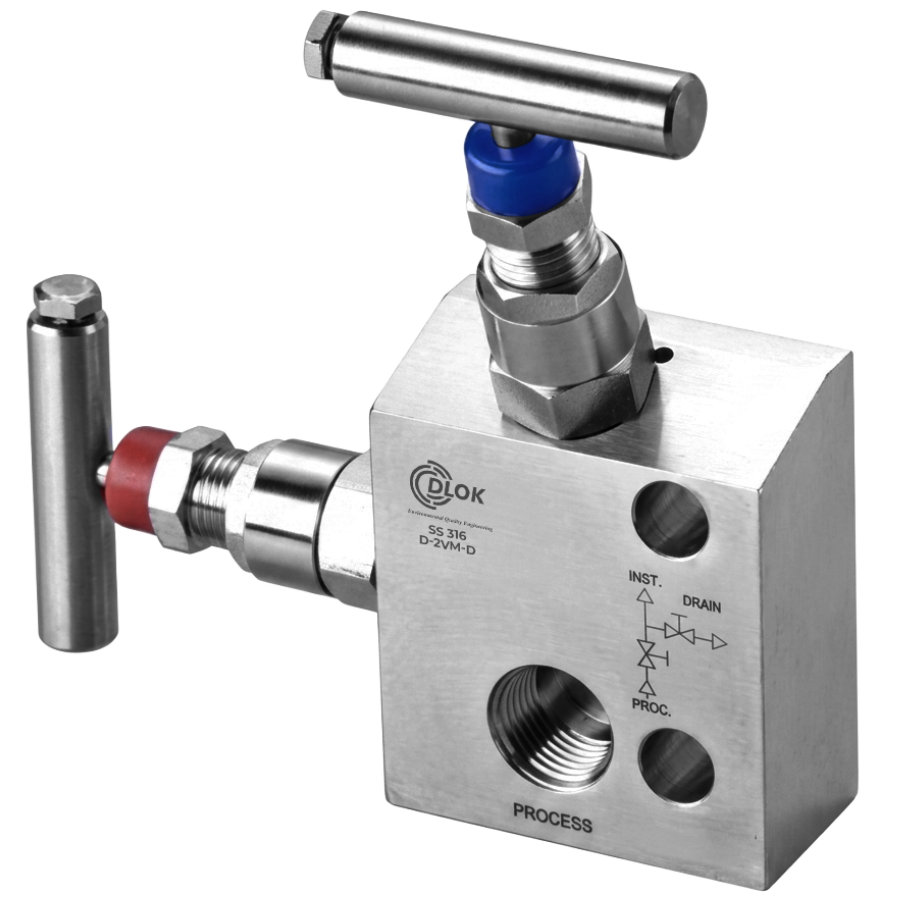

Direct Mount (D-2VM-D) Direct Mount (D-2VM-D)

3 valve Manifolds

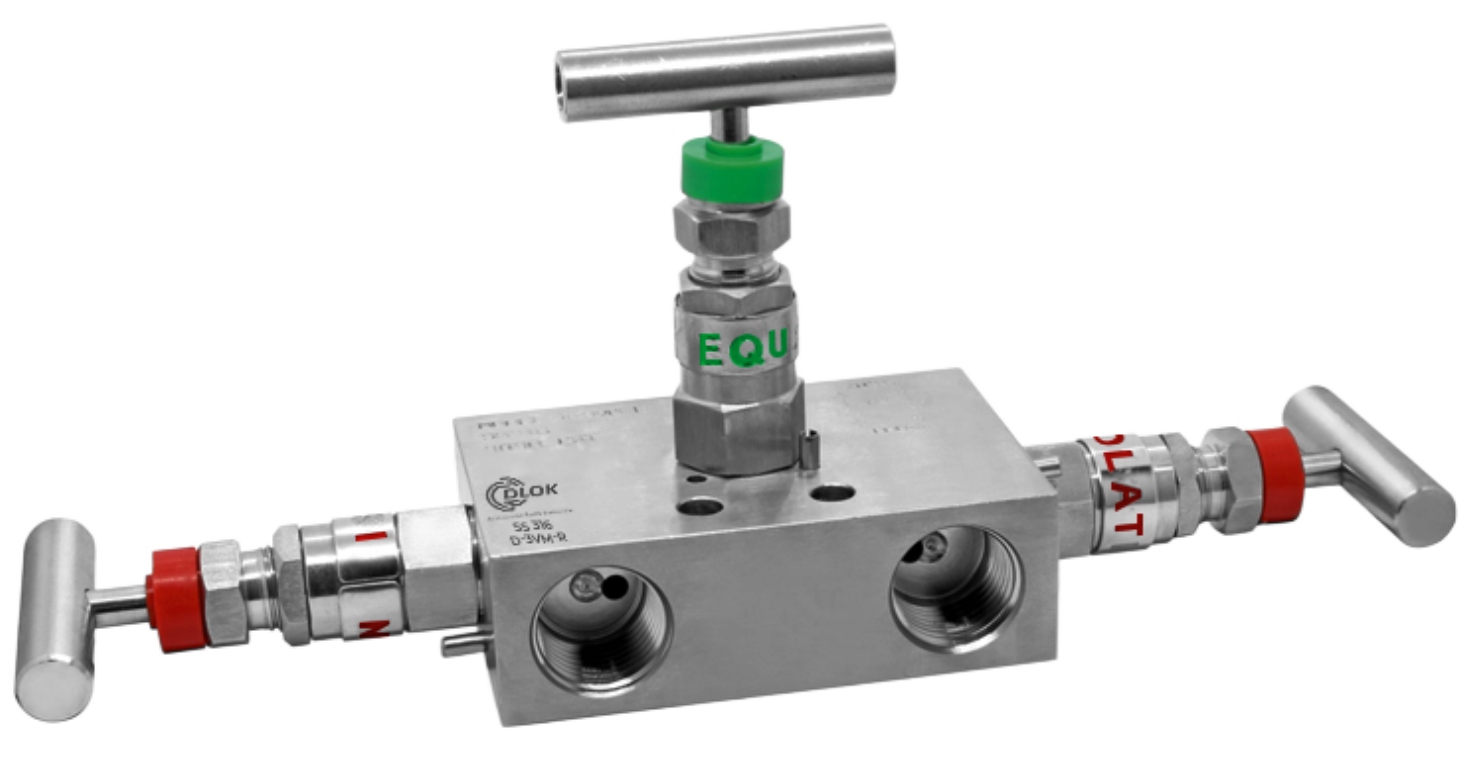

Pipe to Pipe (D-3VM-R) Pipe to Pipe (D-3VM-R)

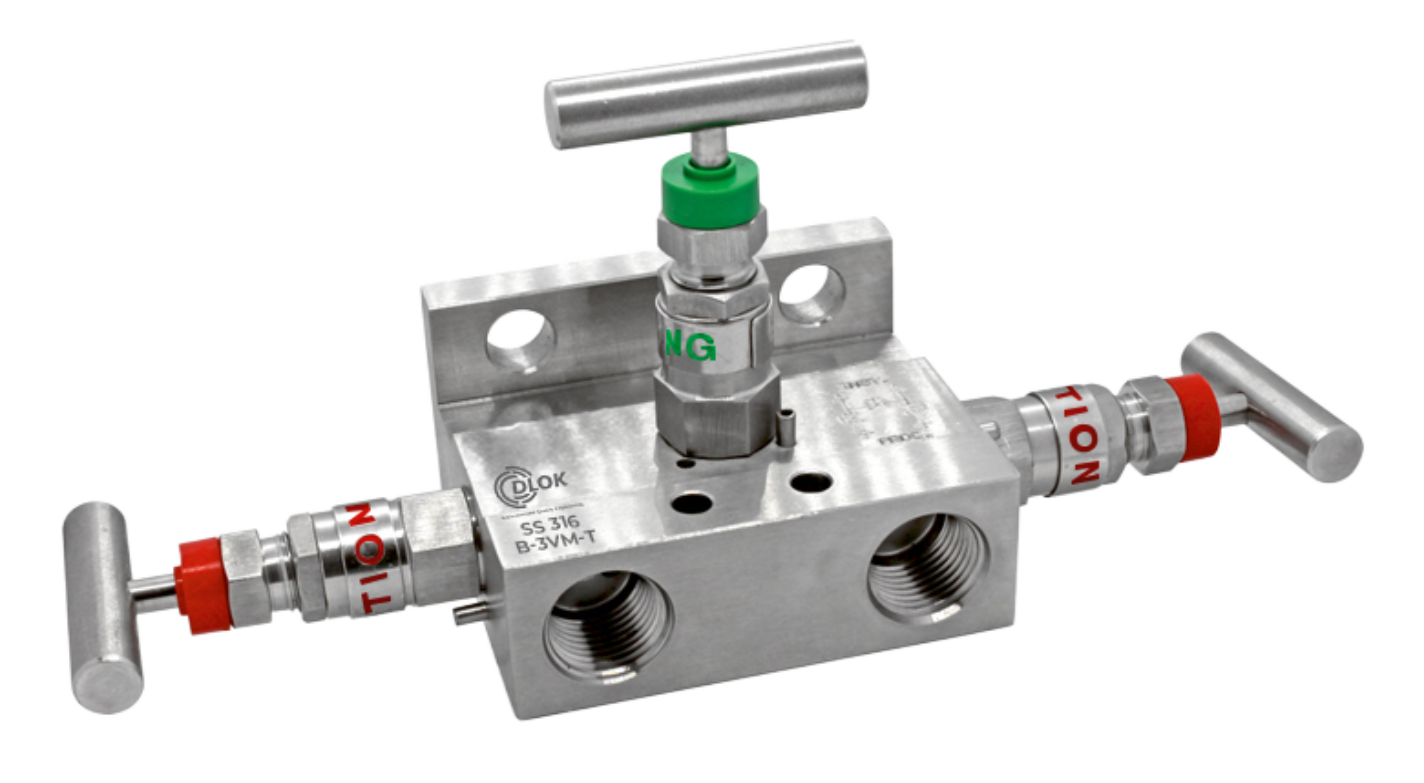

Pipe to Flange (D-3VM-T) Pipe to Flange (D-3VM-T)

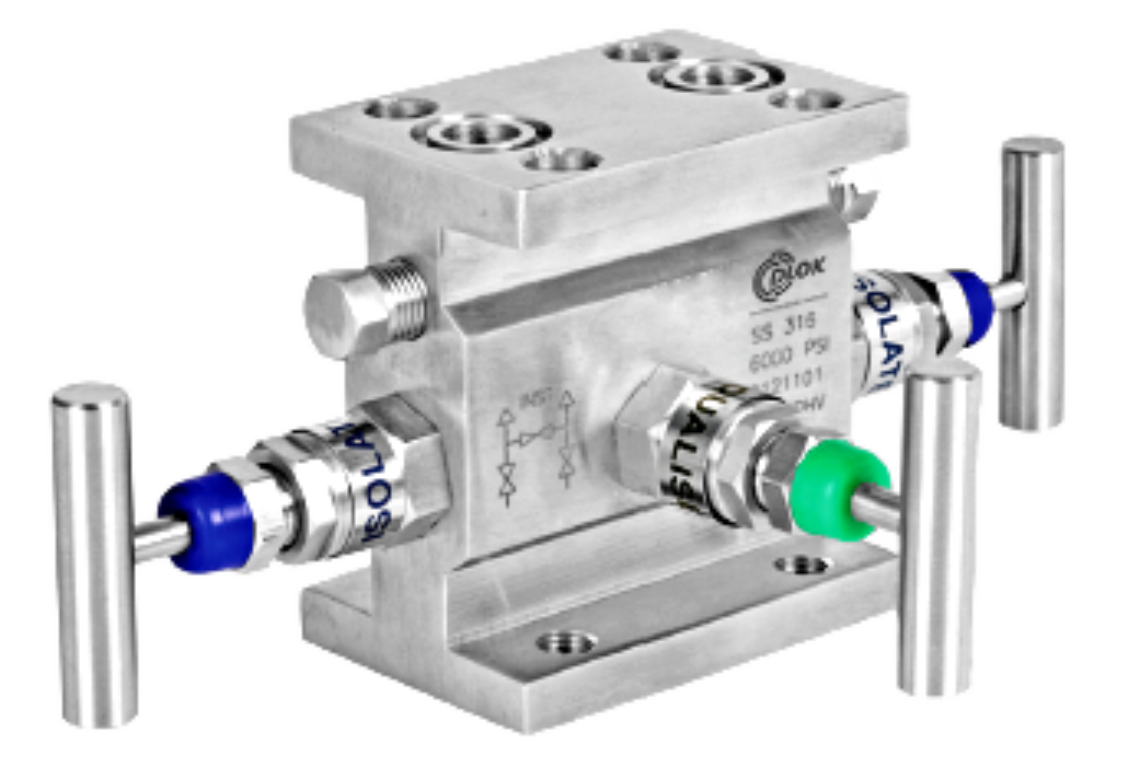

Flange to Flange (D-3VM-H) Flange to Flange (D-3VM-H)

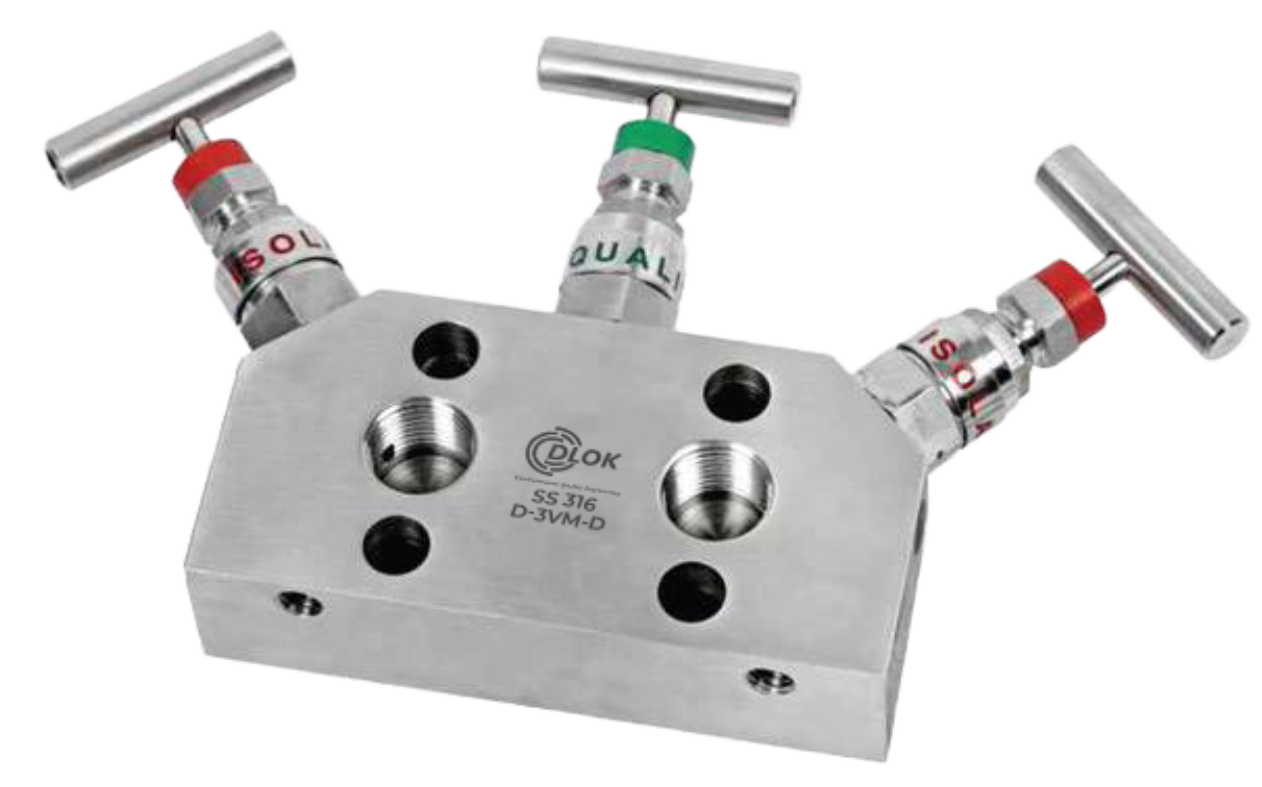

Direct Mount (D-3VM-D) Direct Mount (D-3VM-D)

5 Valve Manifolds

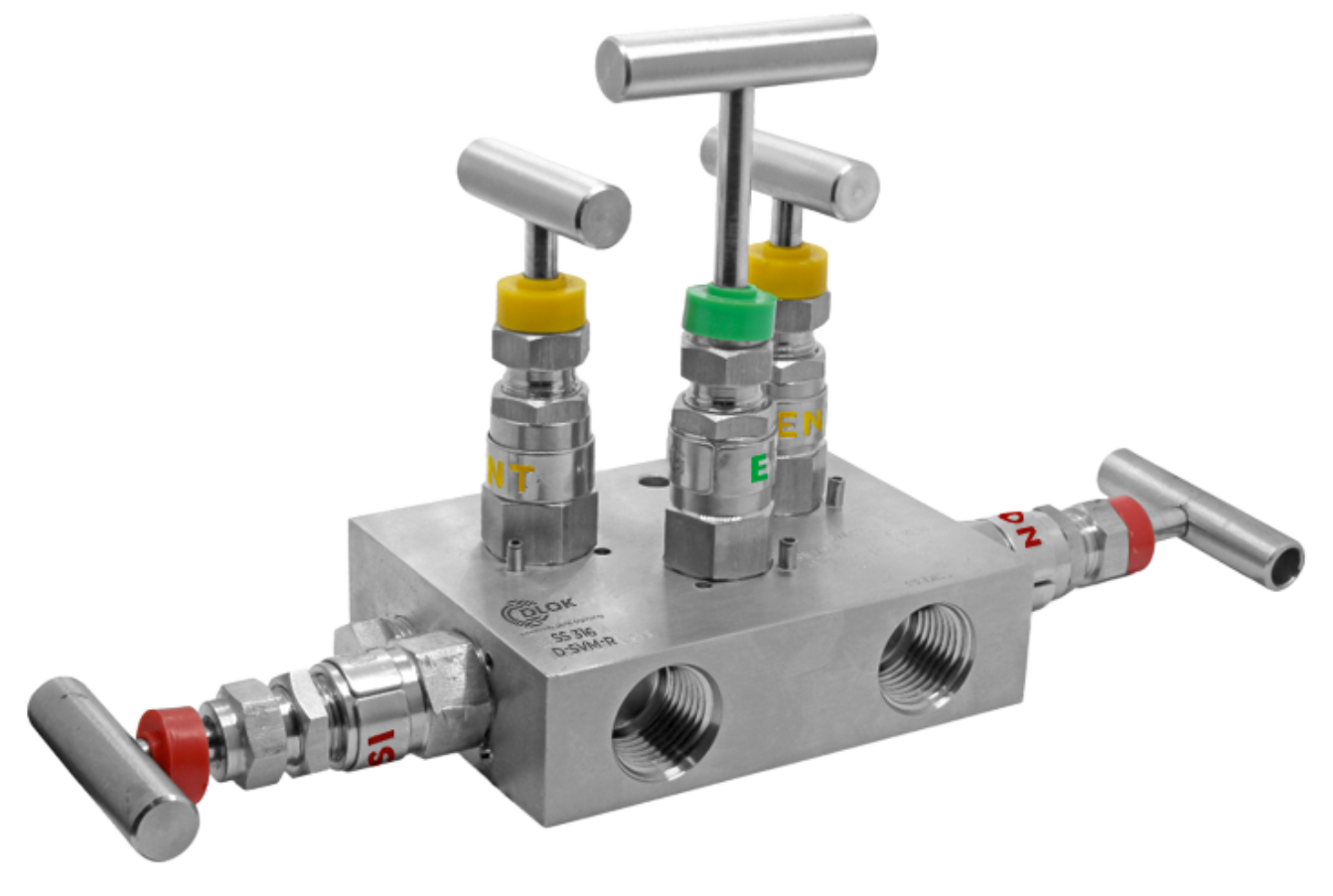

Pipe to Pipe (D-5VM-R) Pipe to Pipe (D-5VM-R)

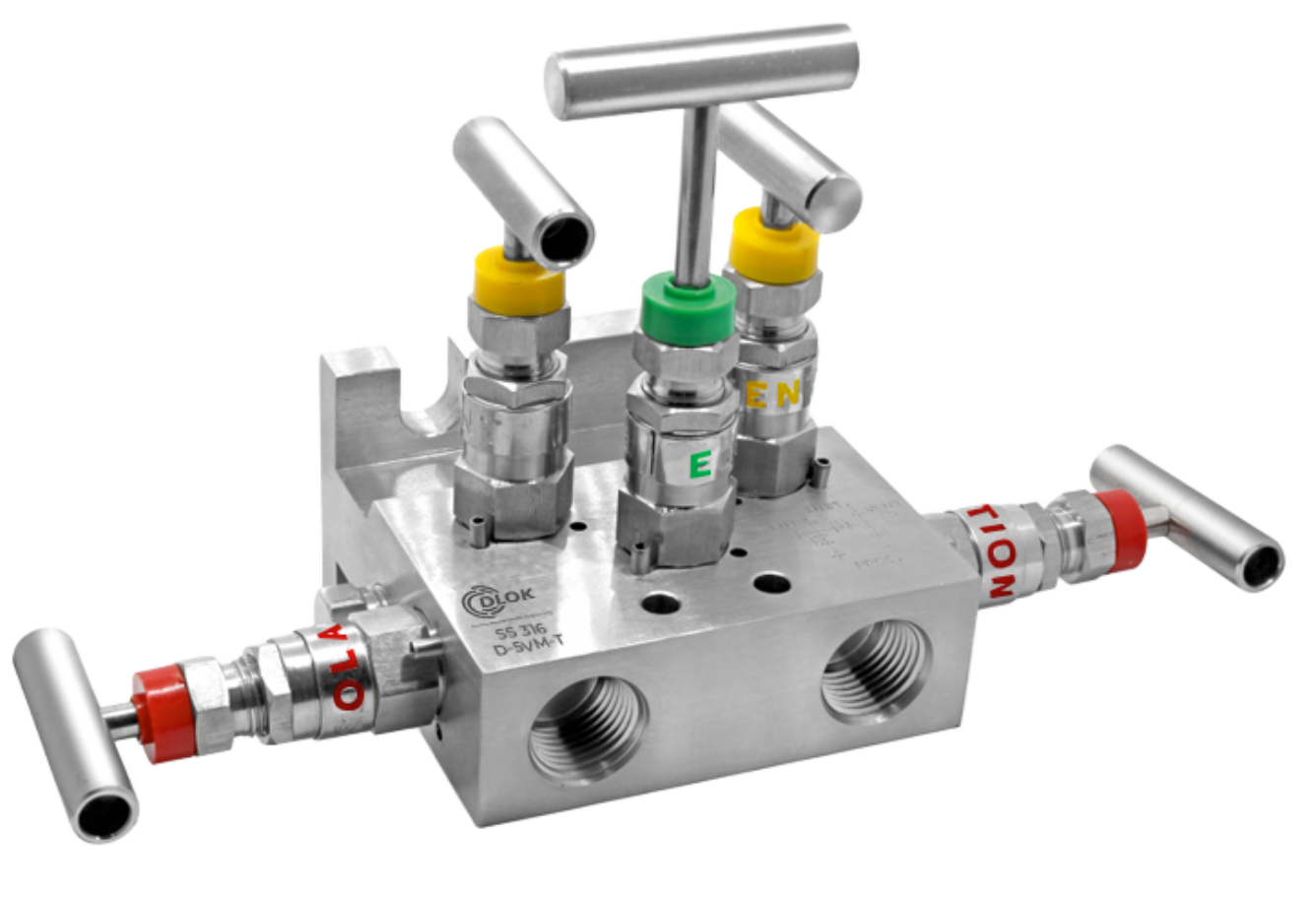

Pipe to Flange (D-5VM-T) Pipe to Flange (D-5VM-T)

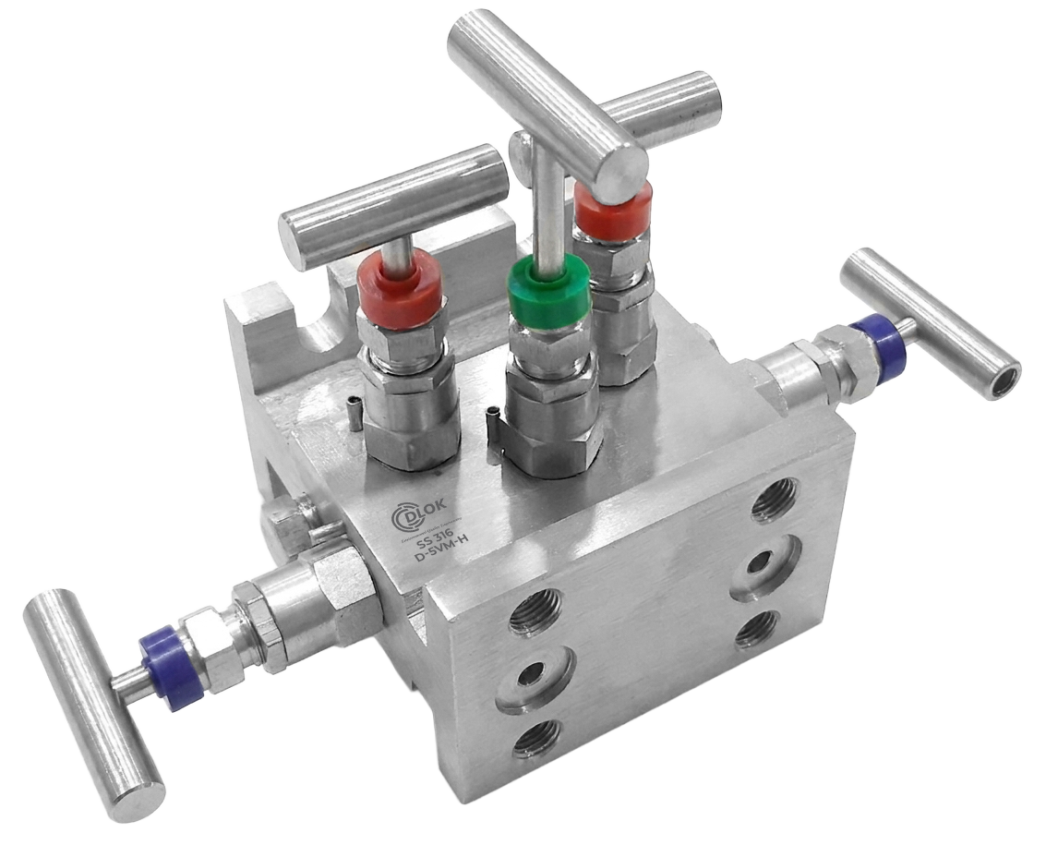

Flange to Flange (D-5VM-H) Flange to Flange (D-5VM-H)

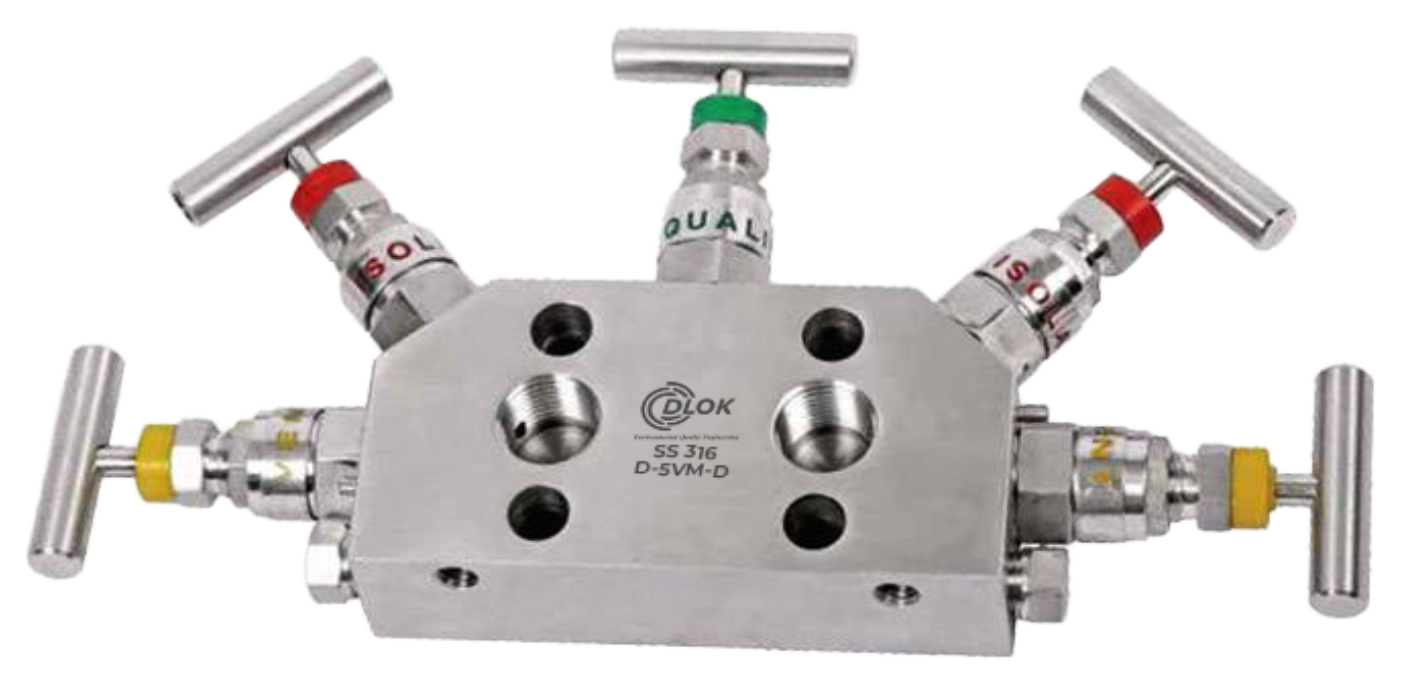

Direct Mount (D-5VM-D) Direct Mount (D-5VM-D)
