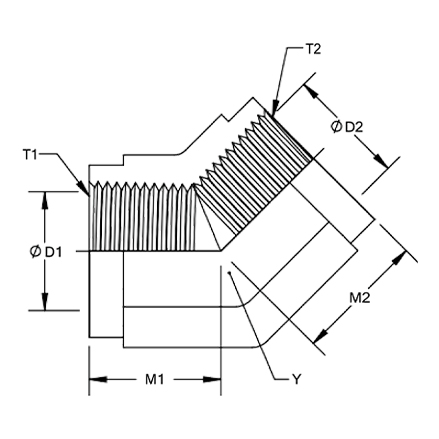

45° Female Pipe Elbow
DLOK Part No.: 5505
| DLOK | Y HEX | T1 | M1 | D1 | T2 | M2 | D2 |
| 5505-02-02 | 0.563 | 1/8-27 | 0.500 | 0.332 | 1/8-27 | 0.500 | 0.332 |
| 5505-04-04 | 0.750 | 1/4-18 | 0.690 | 0.438 | 1/4-18 | 0.690 | 0.438 |
| 5505-06-06 | 0.875 | 3/8-18 | 0.750 | 0.563 | 3/8-18 | 0.750 | 0.563 |
| 5505-08-08 | 1.063 | 1/2-14 | 0.940 | 0.703 | 1/2-14 | 0.940 | 0.703 |
| 5505-12-12 | 1.313 | 3/4-14 | 1.000 | 0.906 | 3/4-14 | 1.000 | 0.906 |
| 5505-16-16 | 1.625 | 1-11-1/2 | 1.190 | 1.141 | 1-11-1/2 | 1.190 | 1.141 |
