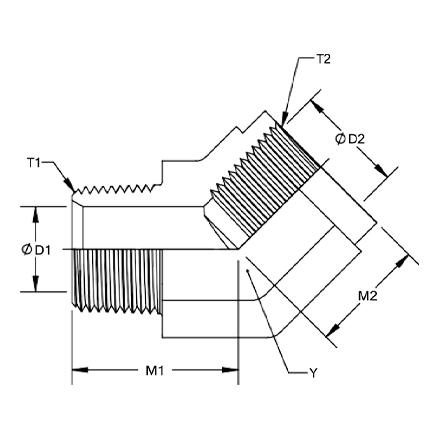

45° Street Elbow
DLOK Part No.: 5503
| DLOK | Y HEX | T1 | M1 | D1 | T2 | M2 | D2 |
| 5503-02-02 | 0.563 | 1/8-27 | 0.720 | 0.188 | 1/8-27 | 0.470 | 0.332 |
| 5503-04-04 | 0.750 | 1/4-18 | 1.050 | 0.281 | 1/4-18 | 0.620 | 0.438 |
| 5503-06-06 | 0.875 | 3/8-18 | 1.060 | 0.406 | 3/8-18 | 0.720 | 0.563 |
| 5503-08-08 | 1.063 | 1/2-14 | 1.340 | 0.531 | 1/2-14 | 0.910 | 0.703 |
| 5503-12-12 | 1.313 | 3/4-14 | 1.380 | 0.719 | 3/4-14 | 0.970 | 0.906 |
| 5503-16-16 | 1.625 | 1-11-1/2 | 1.720 | 0.938 | 1-11-1/2 | 1.120 | 1.141 |
| 5503-20-20 | 1.875 | 1-1/4-11-1/2 | 1.800 | 1.250 | 1-1/4-11-1/2 | 1.630 | 1.484 |
| 5503-24-24 | 2.562 | 1-1/2-11-1/2 | 2.060 | 1.500 | 1-1/2-11-1/2 | 1.690 | 1.744 |
| 5503-32-32 | 2.812 | 2-11-1/2 | 2.150 | 1.938 | 2-11-1/2 | 2.190 | 2.213 |
