90° Male Pipe Elbow

90° Male Pipe Elbow

DLOK Part No.: 5500

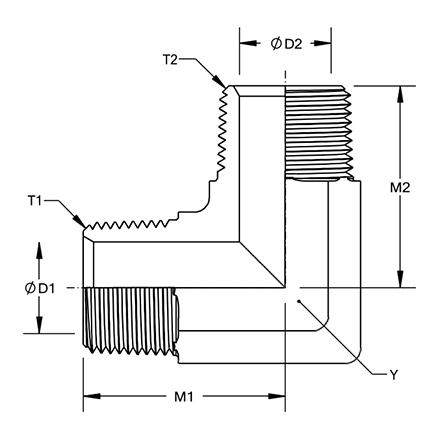

DLOK	Y HEX	T1	M1	D1	T2	M2	D2
5500-02-02	0.438	1/8-27	0.780	0.188	1/8-27	0.780	0.188
5500-04-02	0.563	1/4-18	1.090	0.281	1/8-27	0.900	0.188
5500-04-04	0.563	1/4-18	1.090	0.281	1/4-18	1.090	0.281
5500-06-04	0.750	3/8-18	1.220	0.406	1/4-18	1.220	0.281
5500-06-06	0.750	3/8-18	1.220	0.406	3/8-18	1.220	0.406
5500-08-04	0.875	1/2-14	1.470	0.531	1/4-18	1.280	0.281

DLOK	Y HEX	T1	M1	D1	T2	M2	D2
5500-08-06	0.875	1/2-14	1.470	0.531	3/8-18	1.280	0.406
5500-08-08	0.875	1/2-14	1.470	0.531	1/2-14	1.470	0.531
5500-12-08	1.063	3/4-14	1.590	0.719	1/2-14	1.590	0.531
5500-12-12	1.063	3/4-14	1.590	0.719	3/4-14	1.590	0.719
5500-16-08	1.313	1-11-1/2	1.970	0.938	1/2-14	1.780	0.531
5500-16-12	1.313	1-11-1/2	1.970	0.938	3/4-14	1.780	0.719
5500-16-16	1.313	1-11-1/2	1.970	0.938	1-11-1/2	1.970	0.938
5500-20-20	1.625	1-1/4-11-1/2	2.380	1.250	1-1/4-11-1/2	2.380	1.250
5500-24-24	1.875	1-1/2-11-1/2	2.640	1.500	1-1/2-11-1/2	2.640	1.500
