Male Branch Tee

Male Branch Tee

DLOK Part No.: 5604

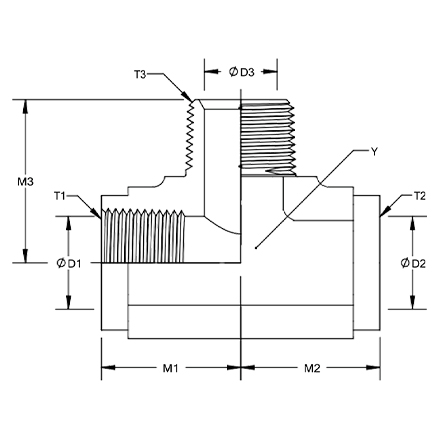

DLOK	Y HEX	T1	M1	D1	T2	M2	D2	T3	M3	D3
5604-02-02-02	0.563	1/8-27	0.660	0.332	1/8-27	0.660	0.332	1/8-27	0.780	0.188
5604-04-04-04	0.750	1/4-18	0.880	0.438	1/4-18	0.880	0.438	1/4-18	1.090	0.281
5604-06-06-06	0.875	3/8-18	1.020	0.563	3/8-18	1.020	0.563	3/8-18	1.220	0.406
5604-08-08-08	1.063	1/2-14	1.230	0.703	1/2-14	1.230	0.703	1/2-14	1.470	0.531
5604-12-12-12	1.313	3/4-14	1.360	0.906	3/4-14	1.360	0.906	3/4-14	1.590	0.719
5604-16-16-16	1.625	1-11-1/2	1.620	1.141	1-11-1/2	1.620	1.141	1-11-1/2	1.970	0.938
5604-20-20-20	1.875	1-1/4-11-1/2	1.700	1.484	1-1/4-11-1/2	1.700	1.484	1-1/4-11-1/2	2.380	1.250
5604-24-24-24	2.562	1-1/2-11-1/2	2.080	1.744	1-1/2-11-1/2	2.080	1.744	1-1/2-11-1/2	2.640	1.500
