Male Pipe Braze Connector
DLOK Part No.: 0404

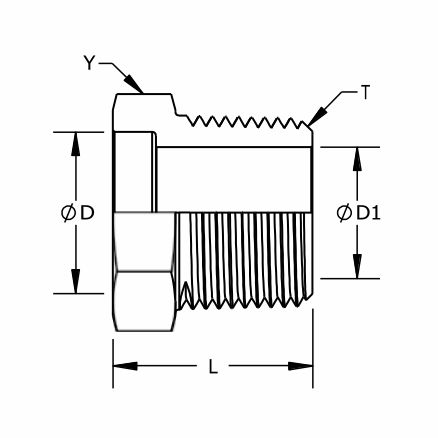

| DLOK | Y HEX | T | D | D1 | L |
| 0404-04-02 | 0.500 | 1/8-27 | 0.254 | 0.188 | 0.563 |
| 0404-06-04 | 0.625 | 1/4-18 | 0.379 | 0.281 | 0.813 |
| 0404-08-06 | 0.813 | 3/8-18 | 0.504 | 0.406 | 0.844 |
| 0404-10-08 | 0.938 | 1/2-14 | 0.631 | 0.531 | 1.078 |
| 0404-12-12 | 1.125 | 3/4-14 | 0.756 | 0.610 | 1.094 |
| 0404-16-12 | 1.250 | 3/4-14 | 1.006 | 0.719 | 1.250 |
| 0404-16-16 | 1.375 | 1-11-1/2 | 1.006 | 0.844 | 1.313 |
| 0404-20-20 | 1.688 | 1-1/4-11-1/2 | 1.256 | 1.080 | 1.406 |
| 0404-24-24 | 2.000 | 1-1/2-11-1/2 | 1.506 | 1.313 | 1.500 |
| 0404-32-32 | 2.625 | 2-11-1/2 | 2.006 | 1.781 | 1.781 |
