Male SAE to Female SAE Adapter
DLOK Part No.: 6410

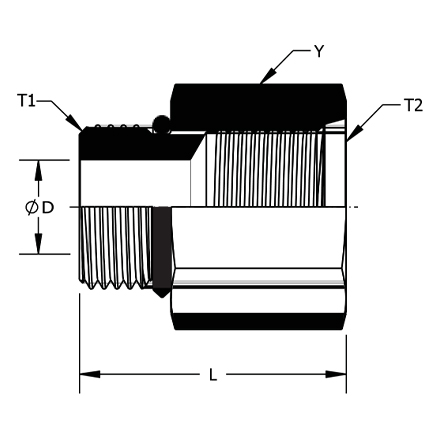

| DLOK | Y HEX | T1 | D | T2 | L |
| 6410-02-04 | 0.688 | 5/16-24 | 0.063 | 7/16-20 | 1.130 |
| 6410-04-02 | 0.563 | 7/16-20 | 0.172 | 5/16-24 | 1.080 |
| 6410-04-04 | 0.688 | 7/16-20 | 0.172 | 7/16-20 | 1.080 |
| 6410-04-06 | 0.813 | 7/16-20 | 0.172 | 9/16-18 | 1.240 |
| 6410-04-08 | 1.063 | 7/16-20 | 0.172 | 3/4-16 | 1.350 |
| 6410-05-04 | 0.688 | 1/2-20 | 0.234 | 7/16-20 | 1.080 |
| 6410-05-06 | 0.813 | 1/2-20 | 0.234 | 9/16-18 | 1.240 |
| 6410-06-04 | 0.688 | 9/16-18 | 0.297 | 7/16-20 | 1.120 |
| 6410-06-06 | 0.813 | 9/16-18 | 0.297 | 9/16-18 | 1.160 |
| 6410-06-08 | 1.063 | 9/16-18 | 0.297 | 3/4-16 | 1.380 |
| 6410-08-04 | 0.875 | 3/4-16 | 0.391 | 7/16-20 | 1.160 |
| 6410-08-06 | 0.875 | 3/4-16 | 0.391 | 9/16-18 | 1.160 |
| 6410-08-08 | 1.063 | 3/4-16 | 0.391 | 3/4-16 | 1.470 |
| 6410-08-10 | 1.125 | 3/4-16 | 0.391 | 7/8-14 | 1.560 |
| 6410-08-12 | 1.375 | 3/4-16 | 0.391 | 1-1/16-12 | 1.730 |
| 6410-10-04 | 1.000 | 7/8-14 | 0.484 | 7/16-20 | 0.910 |
| 6410-10-06 | 1.000 | 7/8-14 | 0.484 | 9/16-18 | 1.270 |
| 6410-10-08 | 1.063 | 7/8-14 | 0.484 | 3/4-16 | 1.380 |
| 6410-10-10 | 1.125 | 7/8-14 | 0.484 | 7/8-14 | 1.690 |
| 6410-10-12 | 1.375 | 7/8-14 | 0.484 | 1-1/16-12 | 1.790 |
| 6410-12-04 | 1.250 | 1-1/16-12 | 0.609 | 7/16-20 | 1.000 |
| 6410-12-06 | 1.250 | 1-1/16-12 | 0.609 | 9/16-18 | 1.000 |
| 6410-12-08 | 1.250 | 1-1/16-12 | 0.609 | 3/4-16 | 1.480 |
| 6410-12-10 | 1.250 | 1-1/16-12 | 0.609 | 7/8-14 | 1.570 |
| 6410-12-12 | 1.375 | 1-1/16-12 | 0.609 | 1-1/16-12 | 1.730 |
| 6410-12-16 | 1.625 | 1-1/16-12 | 0.609 | 1-5/16-12 | 1.880 |
| 6410-14-12 | 1.375 | 1-3/16-12 | 0.719 | 1-1/16-12 | 1.730 |
| 6410-16-04 | 1.500 | 1-5/16-12 | 0.844 | 7/16-20 | 1.000 |
| 6410-16-06 | 1.500 | 1-5/16-12 | 0.844 | 9/16-18 | 1.000 |
| 6410-16-08 | 1.500 | 1-5/16-12 | 0.844 | 3/4-16 | 1.000 |
| 6410-16-10 | 1.500 | 1-5/16-12 | 0.844 | 7/8-14 | 1.570 |
| 6410-16-12 | 1.500 | 1-5/16-12 | 0.844 | 1-1/16-12 | 1.730 |
| 6410-16-14 | 1.625 | 1-5/16-12 | 0.844 | 1-3/16-12 | 1.730 |
| 6410-16-16 | 1.625 | 1-5/16-12 | 0.844 | 1-5/16-12 | 1.730 |
| 6410-16-20 | 2.125 | 1-5/16-12 | 0.844 | 1-5/8-12 | 1.970 |
| DLOK | Y HEX | T1 | D | T2 | L |
| 6410-20-06 | 1.875 | 1-5/8-12 | 1.078 | 9/16-18 | 1.000 |
| 6410-20-08 | 1.875 | 1-5/8-12 | 1.078 | 3/4-16 | 1.000 |
| 6410-20-10 | 1.875 | 1-5/8-12 | 1.078 | 7/8-14 | 1.000 |
| 6410-20-12 | 1.875 | 1-5/8-12 | 1.078 | 1-1/16-12 | 1.000 |
| 6410-20-16 | 1.875 | 1-5/8-12 | 1.078 | 1-5/16-12 | 1.730 |
| 6410-20-24 | 2.250 | 1-5/8-12 | 1.078 | 1-7/8-12 | 1.980 |
| 6410-24-12 | 2.125 | 1-7/8-12 | 1.313 | 1-1/16-12 | 1.000 |
| 6410-24-16 | 2.125 | 1-7/8-12 | 1.313 | 1-5/16-12 | 1.730 |
| 6410-24-20 | 2.125 | 1-7/8-12 | 1.313 | 1-5/8-12 | 1.790 |
| 6410-32-20 | 2.750 | 2-1/2-12 | 1.781 | 1-5/8-12 | 1.000 |
| 6410-32-24 | 2.750 | 2-1/2-12 | 1.781 | 1-7/8-12 | 1.800 |
