Reducer Bushing
DLOK Part No.: 5406

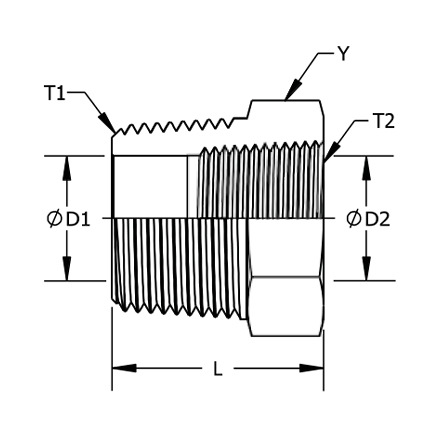

| DLOK | Y HEX | T1 | D1 | T2 | D2 | L |
| 5406-04-02 | 0.625 | 1/4-18 | 0.281 | 1/8-27 | 0.332 | 0.850 |
| 5406-06-02 | 0.750 | 3/8-18 | 0.332 | 1/8-27 | 0.332 | 0.850 |
| 5406-06-04 | 0.750 | 3/8-18 | 0.406 | 1/4-18 | 0.438 | 0.850 |
| 5406-08-02 | 0.875 | 1/2-14 | 0.332 | 1/8-27 | 0.332 | 1.100 |
| 5406-08-04 | 0.875 | 1/2-14 | 0.438 | 1/4-18 | 0.438 | 1.100 |
| 5406-08-06 | 0.875 | 1/2-14 | 0.531 | 3/8-18 | 0.563 | 1.100 |
| 5406-12-02 | 1.125 | 3/4-14 | 0.332 | 1/8-27 | 0.332 | 1.170 |
| 5406-12-04 | 1.125 | 3/4-14 | 0.438 | 1/4-18 | 0.438 | 1.170 |
| 5406-12-06 | 1.125 | 3/4-14 | 0.563 | 3/8-18 | 0.563 | 1.170 |
| 5406-12-08 | 1.125 | 3/4-14 | 0.703 | 1/2-14 | 0.703 | 1.170 |
| 5406-16-04 | 1.375 | 1-11-1/2 | 0.438 | 1/4-18 | 0.438 | 1.360 |
| 5406-16-06 | 1.375 | 1-11-1/2 | 0.563 | 3/8-18 | 0.563 | 1.360 |
| 5406-16-08 | 1.375 | 1-11-1/2 | 0.703 | 1/2-14 | 0.703 | 1.360 |
| 5406-16-12 | 1.375 | 1-11-1/2 | 0.906 | 3/4-14 | 0.906 | 1.360 |
| 5406-20-04 | 1.750 | 1-1/4-11-1/2 | 0.438 | 1/4-18 | 0.438 | 1.470 |
| 5406-20-06 | 1.750 | 1-1/4-11-1/2 | 0.563 | 3/8-18 | 0.563 | 1.470 |
| 5406-20-08 | 1.750 | 1-1/4-11-1/2 | 0.703 | 1/2-14 | 0.703 | 1.470 |
| 5406-20-12 | 1.750 | 1-1/4-11-1/2 | 0.906 | 3/4-14 | 0.906 | 1.470 |
| 5406-20-16 | 1.750 | 1-1/4-11-1/2 | 1.141 | 1-11-1/2 | 1.141 | 1.470 |
| 5406-24-06 | 2.000 | 1-1/2-11-1/2 | 0.563 | 3/8-18 | 0.563 | 1.570 |
| 5406-24-08 | 2.000 | 1-1/2-11-1/2 | 0.703 | 1/2-14 | 0.703 | 1.570 |
| 5406-24-12 | 2.000 | 1-1/2-11-1/2 | 0.906 | 3/4-14 | 0.906 | 1.570 |
| 5406-24-16 | 2.000 | 1-1/2-11-1/2 | 1.141 | 1-11-1/2 | 1.141 | 1.570 |
| 5406-24-20 | 2.000 | 1-1/2-11-1/2 | 1.484 | 1-1/4-11-1/2 | 1.484 | 1.570 |
| 5406-32-20 | 2.500 | 2-11-1/2 | 1.484 | 1-1/4-11-1/2 | 1.484 | 1.750 |
| 5406-32-24 | 2.500 | 2-11-1/2 | 1.744 | 1-1/2-11-1/2 | 1.744 | 1.750 |
