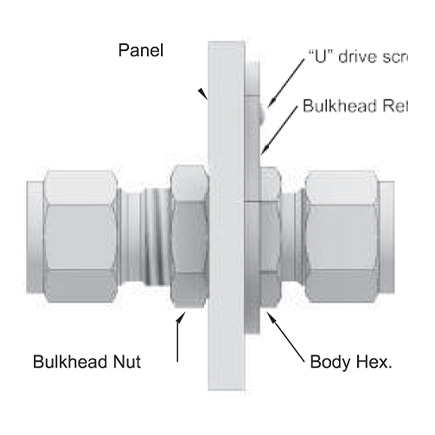

BULKHEAD RETAINER
DBRE

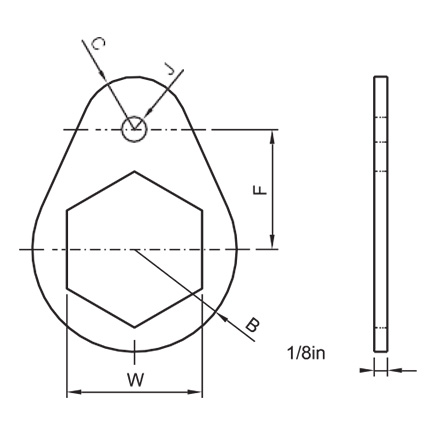

| BULKHEAD RETAINER | ||||||||||
| PART NUMBER | TUBE O.D. | F | W | B | C | J | DREILL HOLE DIA | ‘U’ DRIVE SCREW | DRILL NUMBR | |
| in | mm | |||||||||
| DBRE – 1 | 1/16 | – | 9.52 | 7.93 | 7.93 | 3.97 |
3.97 |
3.0 |
6-3/8 |
31 |
| DBRE – 2 | 1/8 | – | 12.70 | 12.70 | 10.32 | 5.56 | ||||
| DBRE – 3 | 3/16 | 3, 4 | 14.28 | 14.28 | 11.91 | 6.35 | ||||
| DBRE – 4 | 1/4 | 6 | 15.87 | 15.87 | 12.70 | 7.14 | ||||
| DBRE – 5 | 5/16 | – | 17.46 | 17.46 | 14.28 | 7.93 | ||||
| DBRE – 6 | 3/8 | – | 19.05 | 19.05 | 15.87 | 8.73 | ||||
| DBRE – 8 | 1/2 | 12 | 23.81 | 23.81 | 19.05 | 10.32 | ||||
| DBRE – 10 | 5/8 | 15, 16 | 25.40 | 26.98 | 20.64 | 10.23 |
5.56 |
3.66 |
10-1/2 |
27 |
| DBRE – 12 | 3/4 | 18 | 26.98 | 30.16 | 23.02 | 11.91 | ||||
| DBRE – 14 | 7/8 | 20 | 30.20 | 34.93 | 27.80 | 13.49 | ||||
| DBRE – 16 | 1 | – | 32.54 | 41.27 | 29.37 | 13.49 | ||||
| 15.74TUBE (INCH) TO MALE NPT THREAD | |||||||||||||||||||
| PART NUMBER | A TUBE O.D. | T NPT | D | W HEX. FLAT | N | N1 | L | L1 | PANEL HOLE DRILL SIZE | MAX PANEL THICKENSS | |||||||||
| in | mm | in | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | |
| DBMC – 2 – 2N | 1/8 | 3.17 | 1/8 | 0.09 | 2.28 | 1/2 | 12.7 | 1.57 | 39.90 | 0.97 | 24.60 | 1.83 | 46.48 | 1.23 | 31.24 | 21/64 | 8.33 | 0.50 | 12.70 |
| DBMC – 4 – 2N | 1/4 | 6.35 | 1/8 | 0.19 | 4.82 | 5/8 | 15.9 | 1.66 | 12.20 | 1.03 | 26.20 | 1.95 | 49.53 | 1.32 | 33.52 | 29/64 | 11.50 | 0.40 | 10.16 |
| DBMC – 4 – 4N | 1/4 | 6.35 | 1/4 | 0.19 | 4.82 | 5/8 | 15.9 | 1.84 | 46.70 | 1.03 | 26.16 | 2.13 | 54.10 | 1.32 | 33.52 | 29/64 | 11.50 | 0.40 | 10.16 |
| DBMC – 6 – 4N | 3/8 | 9.52 | 1/4 | 0.28 | 7.11 | 3/4 | 19.1 | 1.97 | 50.00 | 1.16 | 29.46 | 2.26 | 57.40 | 1.45 | 36.83 | 37/64 | 14.68 | 0.44 | 11.17 |
| DBMC – 8 – 6N | 1/2 | 12.70 | 3/8 | 0.40 | 10.40 | 15/16 | 23.8 | 2.09 | 53.10 | 1.25 | 31.75 | 2.49 | 83.25 | 1.65 | 41.91 | 49/64 | 19.44 | 0.50 | 12.70 |
| DBMC – 8 – 8N | 1/2 | 12.70 | 1/2 | 0.40 | 10.40 | 15/16 | 23.8 | 2.31 | 58.70 | 1.25 | 31.70 | 2.71 | 68.83 | 1.65 | 41.91 | 49/64 | 19.44 | 0.50 | 12.70 |
| DBMC – 12 – 12N | 3/4 | 19.05 | 3/4 | 0.62 | 15.74 | 1-3/16 | 30.16 | 2.60 | 66.04 | 1.47 | 37.33 | 3.00 | 76.20 | 1.87 | 47.49 | 1-1/64 | 25.76 | 0.66 | 16.76 |
| DBMC – 16 – 16N | 1 | 25.40 | 1 | 0.88 | 22.35 | 1-5/8 | 41.27 | 3.19 | 81.02 | 1.78 | 45.21 | 3.67 | 93.21 | 2.26 | 57.40 | 1-21/64 | 33.73 | 0.75 | 19.05 |
“D” – Dimension is minimum opening – dimensions are for reference only, and are subject to change without notice.
