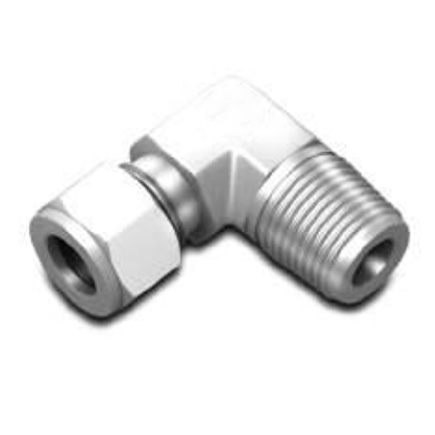

MALE 90⁰ ELBOW

MALE 90⁰ ELBOW

DME

TUBE (METRIC) MALE NPT THREAD

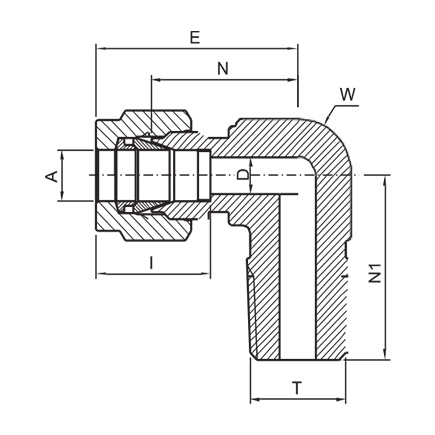

PART NUMBER A TUBE O.D. T NPT D W WERENCH FLAT N E N1 L
  Mm In Mm In Mm Mm Mm Mm mm
DME – 3M – 2N 3 1/8 2.4 7/16 11.1 17.0 23.6 17.8 12.9
DME – 3M – 4N 3 1/4 2.4 1/2 12.7 18.0 24.6 23.4 12.9
DME – 4M – 2N 4 1/8 2.4 1/2 12.7 18.8 25.4 18.8 13.7
DME – 4M – 4N 4 1/4 2.4 1/2 12.7 18.8 25.4 23.4 13.7
DME – 6M – 2N 6 1/8 4.8 1/2 12.7 19.6 27.0 18.8 15.3
DME – 6M – 4N 6 1/4 4.8 1/2 12.7 19.6 27.0 23.4 15.3
DME – 6M – 6N 6 3/8 4.8 11/16 17.5 22.4 29.8 26.2 15.3
DME – 6M – 8N 6 1/2 4.8 13/16 20.6 24.4 31.8 33.0 15.3
DME – 8M – 2N 8 1/8 4.8 9/16 14.3 21.3 28.8 19.8 16.2
DME – 8M – 4N 8 1/4 6.4 9/16 14.3 21.3 28.8 24.4 16.2
DME – 8M – 6N 8 3/8 6.4 11/16 17.5 23.1 30.6 26.2 16.2
DME – 8M – 8N 8 1/2 6.4 13/16 20.6 25.1 32.6 33.0 16.2
DME – 10M – 2N 10 1/8 4.8 11/16 17.5 23.9 31.5 21.6 17.2
DME – 10M – 4N 10 1/4 7.1 11/16 17.5 23.9 31.5 26.2 17.2
DME – 10M – 6N 10 3/8 7.9 11/16 17.5 23.9 31.5 26.2 17.2
DME – 10M – 8N 10 1/2 7.9 13/16 20.6 25.9 33.5 33.0 17.2
DME – 12M – 2N 12 1/8 4.8 13/16 20.6 25.9 36.0 23.6 22.8
DME – 12M – 4N 12 1/4 7.1 13/16 20.6 25.9 36.0 28.2 22.8
DME – 12M – 6N 12 3/8 9.5 13/16 20.6 25.9 36.0 28.2 22.8
DME – 12M – 8N 12 1/2 9.5 13/16 20.6 25.9 36.0 33.0 22.8
DME – 12M – 12N 12 3/4 9.5 1-1/16 27.0 29.7 39.8 36.8 22.8
DME – 15M – 8N 15 1/2 11.9 15/16 23.8 27.9 38.0 35.1 24.4
DME – 16M – 6N 16 3/8 9.5 15/16 23.8 27.9 38.0 30.2 24.4
DME – 16M – 8N 16 1/2 11.9 15/16 23.8 27.9 38.0 35.1 24.4
DME – 16M – 12N 16 3/4 12.7 1-1/16 27.0 29.7 39.8 36.8 24.4
DME – 18M – 8N 18 1/2 11.9 1-1/16 27.0 29.7 39.8 36.8 24.4
DME – 18M – 12N 18 3/4 15.1 1-1/16 27.0 29.7 39.8 36.8 24.4
DME – 20M – 8N 20 1/2 11.9 1-3/8 34.9 34.5 44.6 41.7 26.0
DME – 20M – 12N 20 3/4 15.9 1-3/8 34.9 34.5 44.6 41.7 26.0
DME – 22M – 12N 22 3/4 15.9 1-3/8 34.9 34.5 44.6 41.7 26.0
DME – 22M – 16N 22 1 18.3 1-3/8 34.9 34.5 44.6 46.5 26.0
DME – 25M – 12N 25 3/4 15.9 1-3/8 34.9 36.8 49.1 41.7 31.3
DME – 25M – 16N 25 1 21.8 1-3/8 34.9 36.8 49.1 46.5 31.3
TUBE (METRIC) MALE NPT THREAD
PART NUMBER A TUBE O.D. T NPT D W WERENCH FLAT N E N1 L
  Mm In Mm In Mm Mm Mm Mm mm
DME – 3M – 2N 3 1/8 2.4 7/16 11.1 17.0 23.6 17.8 12.9
DME – 3M – 4N 3 1/4 2.4 1/2 12.7 18.0 24.6 23.4 12.9
DME – 4M – 2N 4 1/8 2.4 1/2 12.7 18.8 25.4 18.8 13.7
DME – 4M – 4N 4 1/4 2.4 1/2 12.7 18.8 25.4 23.4 13.7
DME – 6M – 2N 6 1/8 4.8 1/2 12.7 19.6 27.0 18.8 15.3
DME – 6M – 4N 6 1/4 4.8 1/2 12.7 19.6 27.0 23.4 15.3
DME – 6M – 6N 6 3/8 4.8 11/16 17.5 22.4 29.8 26.2 15.3
DME – 6M – 8N 6 1/2 4.8 13/16 20.6 24.4 31.8 33.0 15.3
DME – 8M – 2N 8 1/8 4.8 9/16 14.3 21.3 28.8 19.8 16.2
DME – 8M – 4N 8 1/4 6.4 9/16 14.3 21.3 28.8 24.4 16.2
DME – 8M – 6N 8 3/8 6.4 11/16 17.5 23.1 30.6 26.2 16.2
DME – 8M – 8N 8 1/2 6.4 13/16 20.6 25.1 32.6 33.0 16.2
DME – 10M – 2N 10 1/8 4.8 11/16 17.5 23.9 31.5 21.6 17.2
DME – 10M – 4N 10 1/4 7.1 11/16 17.5 23.9 31.5 26.2 17.2
DME – 10M – 6N 10 3/8 7.9 11/16 17.5 23.9 31.5 26.2 17.2
DME – 10M – 8N 10 1/2 7.9 13/16 20.6 25.9 33.5 33.0 17.2
DME – 12M – 2N 12 1/8 4.8 13/16 20.6 25.9 36.0 23.6 22.8
DME – 12M – 4N 12 1/4 7.1 13/16 20.6 25.9 36.0 28.2 22.8
DME – 12M – 6N 12 3/8 9.5 13/16 20.6 25.9 36.0 28.2 22.8
DME – 12M – 8N 12 1/2 9.5 13/16 20.6 25.9 36.0 33.0 22.8
DME – 12M – 12N 12 3/4 9.5 1-1/16 27.0 29.7 39.8 36.8 22.8
DME – 15M – 8N 15 1/2 11.9 15/16 23.8 27.9 38.0 35.1 24.4
DME – 16M – 6N 16 3/8 9.5 15/16 23.8 27.9 38.0 30.2 24.4
DME – 16M – 8N 16 1/2 11.9 15/16 23.8 27.9 38.0 35.1 24.4
DME – 16M – 12N 16 3/4 12.7 1-1/16 27.0 29.7 39.8 36.8 24.4
DME – 18M – 8N 18 1/2 11.9 1-1/16 27.0 29.7 39.8 36.8 24.4
DME – 18M – 12N 18 3/4 15.1 1-1/16 27.0 29.7 39.8 36.8 24.4
DME – 20M – 8N 20 1/2 11.9 1-3/8 34.9 34.5 44.6 41.7 26.0
DME – 20M – 12N 20 3/4 15.9 1-3/8 34.9 34.5 44.6 41.7 26.0
DME – 22M – 12N 22 3/4 15.9 1-3/8 34.9 34.5 44.6 41.7 26.0
DME – 22M – 16N 22 1 18.3 1-3/8 34.9 34.5 44.6 46.5 26.0
DME – 25M – 12N 25 3/4 15.9 1-3/8 34.9 36.8 49.1 41.7 31.3
DME – 25M – 16N 25 1 21.8 1-3/8 34.9 36.8 49.1 46.5 31.3
TUBE (METRIC) ISO TAPERED THREAD
PART NUMBER A TUBE O.D. T ISO D W WRENCH FLAT N E N1 I
  mm in mm in mm mm mm mm mm
DME – 3M – 2P 3 R 1/8 2.4 7/16 11.1 17.0 23.6 17.8 12.9
DME – 3M – 4P 3 R 1/4 2.4 1/2 12.7 18.0 24.6 23.4 12.9
DME – 4M – 2P 4 R 1/8 2.4 1/2 12.7 18.8 25.4 18.8 13.7
DME – 4M – 4P 4 R 1/4 2.4 1/2 12.7 18.8 25.4 23.4 13.7
DME – 6M – 2P 6 R 1/8 4.8 1/2 12.7 19.6 27.0 18.8 15.3
DME – 6M – 4P 6 R 1/4 4.8 1/2 12.7 19.6 27.0 23.4 15.3
DME – 6M – 6P 6 R 3/8 4.8 11/16 17.5 22.4 29.8 26.2 15.3
DME – 6M – 8P 6 R 1/2 4.8 13/16 20.6 24.4 31.8 33.0 15.3
DME – 8M – 2P 8 R 1/8 4.8 9/16 14.3 21.3 28.8 19.8 16.2
DME – 8M – 4P 8 R 1/4 6.4 9/16 14.3 21.3 28.8 24.4 16.2
DME – 8M – 6P 8 R 3/8 6.4 11/16 17.5 23.1 30.6 26.2 16.2
DME – 8M – 8P 8 R 1/2 6.4 13/16 20.6 25.1 32.6 33.0 16.2
DME – 10M – 2P 10 R 1/8 4.8 11/16 17.5 23.9 31.5 21.6 17.2
DME – 10M – 4P 10 R 1/4 7.1 11/16 17.5 23.9 31.5 26.2 17.2
DME – 10M – 6P 10 R 3/8 7.9 11/16 17.5 23.9 31.5 26.2 17.2
DME – 10M – 8P 10 R 1/2 7.9 13/16 20.6 25.9 33.5 33.0 17.2
DME – 12M – 2P 12 R 1/8 4.8 13/16 20.6 25.9 36.0 23.6 22.8
DME – 12M – 4P 12 R 1/4 7.1 13/16 20.6 25.9 36.0 28.2 22.8
DME – 12M – 6P 12 R 3/8 9.5 13/16 20.6 25.9 36.0 28.2 22.8
DME – 12M – 8P 12 R 1/2 9.5 13/16 20.6 25.9 36.0 33.0 22.8
DME – 12M – 12P 12 R 3/4 9.5 1-1/16 27.0 29.7 39.8 36.8 22.8
DME – 16M – 6P 16 R 3/8 9.5 15/16 23.8 27.9 38.0 30.2 24.4
DME – 16M – 8P 16 R 1/2 11.9 15/16 23.8 27.9 38.0 35.1 24.4
DME – 18M – 8P 18 R 1/2 11.9 1-1/16 27.0 29.7 39.8 36.8 24.4
DME – 18M – 12P 18 R 3/4 15.1 1-1/16 27.0 29.7 39.8 36.8 24.4
DME – 20M – 8P 20 R 1/2 11.9 1-3/8 34.9 34.5 44.6 41.7 26.0
DME – 20M – 12P 20 R 3/4 15.9 1-3/8 34.9 34.5 44.6 41.7 26.0
DME – 22M – 12P 22 R 3/4 15.9 1-3/8 34.9 34.5 44.6 41.7 26.0
DME – 22M – 16P 22 R 1 18.3 1-3/8 34.9 34.5 44.6 46.5 26.0
DME – 25M – 12P 25 R 3/4 15.9 1-3/8 34.9 36.8 49.1 41.7 31.3
DME – 25M – 16P 25 R 1 21.8 1-3/8 34.9 36.8 49.1 46.5 31.3

Reference Specififcations :



DIN – ISO 2999 – 55° Thread angle

BS – 21 – Truncation of root and crest are round

JIS – B0203 – Taper angle 1° 47’

TUBE (INCH) ISO TAPERED THREAD
PART NUMBER A TUBE O.D. T ISO D W WRENCH FLAT N E N1 I
  in mm in in mm in mm in mm in mm in mm in mm
DME – 1 – 1P 1/16 1.58 R 1/16 0.05 1.27 7/16 11.1 0.60 15.24 0.75 19.05 0.70 17.78 0.34 8.6
DME – 1 – 2P 1/16 1.58 R 1/8 0.05 1.27 7/16 11.1 0.60 15.24 0.75 19.05 0.70 17.78 0.34 8.6
DME – 2 – 2P 1/8 3.17 R 1/8 0.09 2.28 7/16 11.1 0.67 17.02 0.93 23.62 0.70 17.78 0.50 12.7
DME – 2 – 4P 1/8 3.17 R 1/4 0.09 2.28 1/2 12.7 0.71 18.03 0.97 24.64 0.92 23.37 0.50 12.7
DME – 3 – 2P 3/16 4.76 R 1/8 0.12 3.04 1/2 12.7 0.74 18.80 1.00 25.40 0.74 18.80 0.54 13.7
DME – 3 – 4P 3/16 4.76 R 1/4 0.12 3.04 1/2 12.7 0.74 18.80 1.00 25.40 0.92 23.37 0.54 13.7
DME – 4 – 1P 1/4 6.35 R 1/16 0.12 3.04 1/2 12.7 0.77 19.55 1.06 26.9 0.74 18.79 0.60 15.3
DME – 4 – 2P 1/4 6.35 R 1/8 0.19 4.82 1/2 12.7 0.77 19.56 1.06 26.92 0.74 18.80 0.60 15.3
DME – 4 – 4P 1/4 6.35 R 1/4 0.19 4.82 1/2 12.7 0.77 19.56 1.06 26.92 0.92 23.37 0.60 15.3
DME – 4 – 6P 1/4 6.35 R 3/8 0.19 4.82 11/16 17.5 0.88 22.35 1.17 29.71 1.03 26.16 0.60 15.3
DME – 4 – 8P 1/4 6.35 R 1/2 0.19 4.82 13/16 20.6 0.96 24.38 1.25 31.75 1.30 33.02 0.60 15.3
DME – 5 – 2P 5/16 7.93 R 1/8 0.19 4.82 9/16 14.3 0.84 21.34 1.13 28.70 0.78 19.81 0.64 16.2
DME – 5 – 4P 5/16 7.93 R 1/4 0.25 6.35 9/16 14.3 0.84 21.34 1.13 28.70 0.96 24.38 0.64 16.2
DME – 5 – 6P 5/16 7.93 R 3/8 0.25 6.35 11/16 17.5 0.91 23.11 1.20 30.48 1.03 26.16 0.64 16.2
DME – 6 – 2P 3/8 9.52 R 1/8 0.19 4.82 5/8 15.9 0.91 23.11 1.20 30.48 0.82 20.83 0.66 16.9
DME – 6 – 4P 3/8 9.52 R 1/4 0.28 7.11 5/8 15.9 0.91 23.11 1.20 30.48 1.00 25.40 0.66 16.9
DME – 6 – 6P 3/8 9.52 R 3/8 0.28 7.11 11/16 17.5 0.94 23.87 1.23 31.24 1.03 26.16 0.66 16.9
DME – 6 – 8P 3/8 9.52 R 1/2 0.28 7.11 13/16 20.6 1.02 25.90 1.31 33.28 1.30 33.02 0.66 16.9
DME – 6 – 12P 3/8 9.52 R 3/4 0.28 7.11 1-1/16 27.0 1.17 29.71 1.46 37.08 1.45 36.83 0.66 16.9
DME – 8 – 4P 1/2 12.70 R 1/4 0.28 7.11 13/16 20.6 1.02 25.90 1.42 36.07 1.11 28.19 0.90 22.9
DME – 8 – 6P 1/2 12.70 R 3/8 0.38 9.65 13/16 20.6 1.02 25.90 1.42 36.07 1.11 28.19 0.90 22.9
DME – 8 – 8P 1/2 12.70 R 1/2 0.41 10.41 13/16 20.6 1.02 25.90 1.42 36.07 1.30 33.02 0.90 22.9
DME – 8 – 12P 1/2 12.70 R 3/4 0.41 10.41 1-1/16 27.0 1.17 29.71 1.57 39.88 1.45 36.83 090 22.9
DME – 10 – 6P 5/8 15.87 R 3/8 0.38 9.61 15/16 23.8 1.10 27.94 1.50 38.10 1.19 30.23 0.96 24.4
DME – 10 – 8P 5/8 15.87 R 1/2 0.47 11.94 15/16 23.8 1.10 27.94 1.50 38.10 1.38 35.05 0.96 24.4
DME – 10 – 12P 5/8 15.87 R 3/4 0.50 12.70 1-1/16 27.0 1.17 29.71 1.57 39.88 1.45 36.83 0.96 24.4
DME – 12 – 8P 3/4 19.05 R 1/2 0.47 15.74 1-1/16 27.0 1.17 29.71 1.57 39.88 1.45 36.83 0.96 24.5
DME – 12 – 12P 3/4 19.05 R 3/4 0.62 15.74 1-1/16 27.0 1.17 29.71 1.57 39.88 1.45 36.83 0.96 24.5
DME – 14 – 12P 7/8 22.22 R 3/4 0.62 15.74 1-3/16 34.9 1.36 34.54 1.76 44.70 1.64 41.66 1.02 25.9
DME – 16 – 12P 1 25.40 R 3/4 0.62 15.74 1-3/8 34.9 1.45 36.83 1.93 49.02 1.64 41.66 1.23 31.2
DME – 16 – 16P 1 25.4 R 1 0.88 22.35 1-3/8 34.9 1.45 36.83 1.93 49.02 1.83 46.48 1.23 31.2
DME – 20 – 20P 1-1/4 31.75 R 1-1/4 1.09 27.7 1-11/16 42.9 1.75 44.45 2.62 66.5 1.88 47.75 1.62 41.2
DME – 24 – 24P 1-1/2 38.1 R 1-1/2 1.34 34.0 2 50.8 2.0 50.8 3.07 78.0 2.38 60.45 1.97 50.0
DME – 32 – 32P 2 50.8 R 2 1.81 45.97 2-3/4 69.9 2.75 69.85 4.22 107.19 2.78 70.61 2.66 67.6
