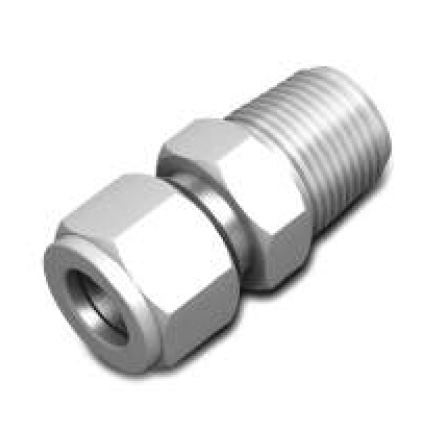

MALE CONNECTOR

MALE CONNECTOR – DMC-P

TUBE (METRIC) ISO TAPERED THREAD
PART NUMBER	A TUBE O.D.	T ISO	D	W HEX.FLAT	N	L	I
	mm	inn	mm	mm	mm	mm	mm
DMC – 2M – 2P	2	R 1/8	1.7	12	23.9	30.5	12.9
DMC – 3M – 2P	3	R 1/8	2.4	12	23.9	30.5	12.9
DMC – 3M – 4P	3	R 1/4	2.4	14	29.0	35.6	12.9
DMC – 4M – 2P	4	R 1/8	2.4	12	24.6	31.2	13.7
DMC – 4M – 4P	4	R 1/4	2.4	14	29.7	36.3	13.7
DMC – 6M – 2P	6	R 1/8	4.8	14	25.4	32.8	15.3
DMC – 6M – 4P	6	R 1/4	4.8	14	30.5	37.9	15.3
DMC – 6M – 6P	6	R 3/8	4.8	18	31.0	38.4	15.3
DMC – 6M – 8P	6	R 1/2	4.8	22	37.3	44.7	15.3
DMC – 8M – 2P	8	R 1/8	4.8	15	26.7	34.2	16.2
DMC – 8M – 4P	8	R 1/4	6.4	15	31.2	38.7	16.2
DMC – 8M – 6P	8	R 3/8	6.4	18	31.8	39.2	16.2
DMC – 8M – 8P	8	R 1/2	6.4	22	38.1	45.6	16.2
DMC – 10M – 2P	10	R 1/8	4.8	18	28.7	36.3	17.2
DMC – 10M – 4P	10	R 1/4	7.9	18	33.3	40.9	17.2
DMC – 10M – 6P	10	R 3/8	7.9	18	33.3	40.9	17.2
DMC – 10M – 8P	10	R 1/2	7.9	22	38.9	46.5	17.2
DMC – 12M – 4P	12	R 1/4	7.1	22	33.3	43.4	22.8
DMC – 12M – 6P	12	R 3/8	9.5	22	33.3	43.4	22.8
DMC – 12M – 8P	12	R 1/2	9.5	22	38.9	49.0	22.8
DMC – 12M – 12P	12	R 3/4	9.5	27	40.4	50.5	22.8
DMC – 15M – 8P	15	R 1/2	11.9	24	38.9	49.0	24.4
DMC – 16M – 4P	16	R 1/4	7.1	24	34.0	44.1	24.4
DMC – 16M – 6P	16	R 3/8	9.5	24	34.0	44.1	24.4
DMC – 16M – 8P	16	R 1/2	11.9	24	38.9	49.0	24.4
DMC – 16M – 12P	16	R 3/4	12.7	27	40.4	50.5	24.4
DMC – 18M – 8P	18	R 1/2	11.9	27	40.4	50.5	24.4
DMC – 18M – 12P	18	R 3/4	15.1	27	40.4	50.5	24.4
DMC – 20M – 8P	20	R 1/2	11.9	30	42.2	52.3	26.0
DMC – 20M – 12P	20	R 3/4	15.9	30	42.2	52.3	26.0
DMC – 22M – 12P	22	R 3/4	15.9	30	42.2	52.3	26.0
DMC – 22M – 16P	22	R 1	18.3	35	47.0	57.1	26.0
DMC – 25M – 12P	25	R 3/4	15.9	35	45.2	57.5	31.3
DMC – 25M – 16P	25	R 1	21.8	35	50.0	62.3	31.3
DMC – 28M – 16P	28	R 1	21.8	41	51.6	72.4	36.6
DMC – 28M – 20P	28	R 1-1/4	21.8	46	52.3	73.1	36.6
DMC – 32M – 20P	32	R 1-1/4	28.6	46	56.6	79.6	42.0
DMC – 32M – 24P	38	R 1-1/2	33.7	50	58.1	91.6	49.4

TUBE (INCH) ISO TAPERED THREAD
PART NUMBER	A TUBE O.D.		T ISO	D		W HEX. FLAT		N		L		I
	in	mm	in	in	mm	in	mm	in	mm	in	mm	in	mm
DMC – 2 – 2P	1/8	3.17	R 1/8	0.09	2.28	7/16	11.1	0.94	23.90	1.20	30.48	0.50	12.7
DMC – 2 – 4P	1/8	3.17	R 1/4	0.09	2.28	9/16	14.3	1.14	28.95	1.40	35.56	0.50	12.7
DMC – 4 – 2P	1/4	6.35	R 1/8	0.19	4.82	1/2	12.7	1.00	25.40	1.29	32.76	0.60	15.3
DMC – 4 – 4P	1/4	6.35	R 1/4	0.19	4.82	9/16	14.3	1.20	30.50	1.49	37.85	0.60	15.3
DMC – 4 – 6P	1/4	6.35	R 3/8	0.19	4.82	11/16	17.5	1.21	30.78	1.51	38.35	0.60	15.3
DMC – 4 – 8P	1/4	6.35	R 1/2	0.19	4.82	7/8	22.2	1.47	37.34	1.76	44.70	0.60	15.3
DMC – 5 – 2P	5/16	7.93	R 1/8	0.19	4.82	9/16	14.3	1.05	26.67	1.34	34.03	0.64	16.2
DMC – 5 – 4P	5/16	7.93	R 1/4	0.25	6.35	9/16	14.3	1.23	31.24	1.52	38.60	0.64	16.2
DMC – 6 – 2P	3/8	9.52	R 1/8	0.19	4.82	5/8	15.9	1.10	27.90	1.39	35.30	0.66	16.9
DMC – 6 – 4P	3/8	9.52	R 1/4	0.28	7.11	5/8	15.9	1.28	32.51	1.57	39.87	0.66	16.9
DMC – 6 – 6P	3/8	9.52	R 3/8	0.28	7.11	11/16	17.5	1.28	32.51	1.57	39.87	0.66	16.9
DMC – 6 – 8P	3/8	9.52	R 1/2	0.28	7.11	7/8	22.2	1.53	38.90	1.82	46.23	0.66	16.9
DMC – 8 – 4P	1/2	12.70	R 1/4	0.28	7.11	13/16	20.6	1.31	33.27	1.71	43.43	0.90	22.9
DMC – 8 – 6P	1/2	12.70	R 3/8	0.38	9.65	13/16	20.6	1.31	33.27	1.71	43.43	0.90	22.9
DMC – 8 – 8P	1/2	12.70	R 1/2	0.41	10.41	7/8	22.2	1.53	38.90	1.93	49.02	0.90	22.9
DMC – 8 – 12P	1/2	12.70	R 3/4	0.41	10.41	1-1/16	27.0	1.59	40.38	1.99	50.54	0.90	22.9
DMC -12 – 12P	3/4	19.05	R 3/4	0.62	15.74	1-1/16	27.0	1.59	40.38	1.99	50.54	0.96	24.5
DMC -16 – 16P	1	25.40	R 1	0.88	22.35	1-3/8	34.9	1.97	50.03	2.45	62.23	1.23	31.2
DMC – 20 – 16P	1-1/4	31.75	R 1	0.86	21.80	1-3/4	44.5	2.17	55.12	3.04	77.22	1.62	41.2
DMC – 20 – 20P	1-1/4	31.75	R 1-1/4	1.09	27.70	1-3/4	44.5	2.17	55.12	3.04	77.22	1.62	41.2
DMC – 24 – 24P	1-1/2	38.10	R 1-1/2	1.34	34.00	2-1/8	54.0	2.43	61.72	3.50	88.90	1.97	50.0
DMC – 32 – 32P	2	50.80	R 2	1.81	45.97	2-3/4	69.9	3.00	76.20	4.47	113.54	2.66	67.6

“D” – Dimension is minimum opening – dimensions are for reference only, and are subject to change without notice.
