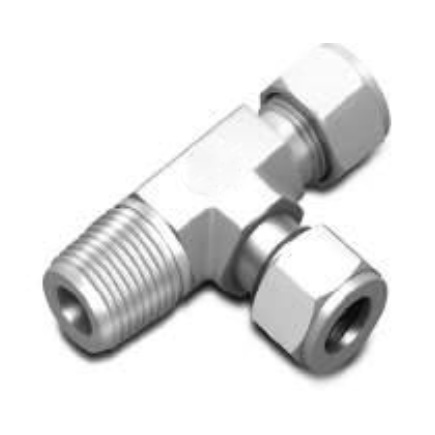

MALE RUN TEE
DMRT

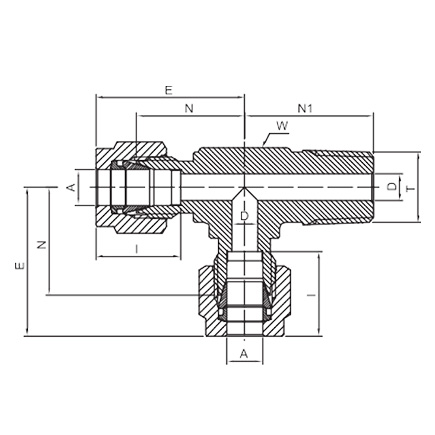

| TUBE (METRIC) TO MALE NPT THREAD | |||||||||
| PART NUMBER | A TUBE O.D. | T NPT | D | W WRENCH FLAT | N | E | N1 | I | |
| mm | in | mm | in | mm | mm | mm | mm | mm | |
| DMRT – 3M – 2N | 3 | 1/8 | 2.4 | 1/2 | 12.7 | 17.0 | 23.6 | 17.8 | 12.9 |
| DMRT – 3M – 4N | 3 | 1/4 | 2.4 | 1/2 | 12.7 | 18.0 | 24.6 | 23.4 | 12.9 |
| DMRT – 4M – 2N | 4 | 1/8 | 2.4 | 1/2 | 12.7 | 18.8 | 25.4 | 18.8 | 13.7 |
| DMRT – 6M – 2N | 6 | 1/8 | 4.8 | 1/2 | 12.7 | 19.6 | 27.0 | 18.8 | 15.3 |
| DMRT – 6M – 4N | 6 | 1/4 | 4.8 | 1/2 | 12.7 | 19.6 | 27.0 | 23.4 | 15.3 |
| DMRT – 8M – 2N | 8 | 1/8 | 4.8 | 5/8 | 15.9 | 22.4 | 29.9 | 20.8 | 16.2 |
| DMRT – 8M – 4N | 8 | 1/4 | 6.4 | 5/8 | 15.9 | 22.4 | 29.9 | 25.4 | 16.2 |
| DMRT – 10M – 4N | 10 | 1/4 | 7.1 | 13/16 | 20.6 | 25.9 | 33.5 | 28.2 | 17.2 |
| DMRT – 10M – 6N | 10 | 3/8 | 7.9 | 11/16 | 17.5 | 23.9 | 31.5 | 28.2 | 17.2 |
| DMRT – 12M – 4N | 12 | 1/4 | 7.1 | 13/16 | 20.6 | 25.9 | 36.0 | 28.2 | 22.8 |
| DMRT – 12M – 6N | 12 | 3/8 | 9.5 | 13/16 | 20.6 | 25.9 | 36.0 | 28.2 | 22.8 |
| DMRT – 12M – 8N | 12 | 1/2 | 9.5 | 13/16 | 20.6 | 25.9 | 36.0 | 33.0 | 22.8 |
| DMRT – 16M – 6N | 16 | 3/8 | 9.5 | 15/16 | 23.8 | 27.9 | 38.0 | 30.2 | 24.4 |
| DMRT – 16M – 8N | 16 | 1/2 | 11.9 | 15/16 | 23.8 | 27.9 | 38.0 | 35.1 | 24.4 |
| DMRT – 20M – 12N | 20 | 3/4 | 15.9 | 1-3/8 | 34.9 | 34.5 | 44.6 | 41.7 | 26.0 |
| TUBE (INCH) TO MALE NPT THREAD | |||||||||||||||
| PART NUMBER | A TUBE O.D. | T NPT | D | W WRENCH FLAT | N | E | N1 | I | |||||||
| in | mm | in | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | |
| DMRT – 2 – 2N | 1/8 | 3.17 | 1/8 | 0.09 | 2.28 | 7/16 | 11.1 | 0.67 | 17.02 | 0.93 | 23.62 | 0.70 | 17.78 | 0.50 | 12.7 |
| DMRT – 2 – 4N | 1/8 | 3.17 | 1/4 | 0.09 | 2.28 | 1/2 | 12.7 | 0.71 | 18.03 | 0.97 | 24.64 | 0.92 | 23.40 | 0.50 | 12.7 |
| DMRT – 3 – 2N | 3/16 | 4.76 | 1/8 | 0.12 | 3.05 | 7/16 | 11.1 | 0.70 | 17.78 | 0.96 | 24.38 | 0.70 | 17.78 | 0.54 | 13.7 |
| DMRT – 4 – 2N | 1/4 | 6.35 | 1/8 | 0.19 | 4.82 | 1/2 | 12.7 | 0.77 | 19.56 | 1.06 | 26.92 | 0.74 | 18.80 | 0.60 | 15.3 |
| DMRT – 4 – 4N | 1/4 | 6.35 | 1/4 | 0.19 | 4.82 | 1/2 | 12.7 | 0.77 | 19.56 | 1.06 | 26.92 | 0.92 | 23.37 | 0.60 | 15.3 |
| DMRT – 5 – 2N | 5/16 | 7.93 | 1/8 | 0.19 | 4.82 | 5/8 | 15.9 | 0.88 | 22.35 | 1.17 | 29.71 | 0.82 | 20.83 | 0.64 | 16.2 |
| DMRT – 6 – 4N | 3/8 | 9.52 | 1/4 | 0.28 | 7.11 | 5/8 | 15.9 | 0.91 | 23.11 | 1.20 | 30.48 | 1.00 | 25.40 | 0.66 | 16.9 |
| DMRT – 6 – 6N | 3/8 | 9.52 | 3/8 | 0.28 | 7.11 | 13/16 | 20.6 | 1.02 | 25.91 | 1.31 | 33.27 | 1.11 | 28.19 | 0.66 | 16.9 |
| DMRT – 8 – 6N | 1/2 | 12.70 | 3/8 | 0.38 | 9.50 | 13/16 | 20.6 | 1.02 | 25.91 | 1.42 | 36.07 | 1.11 | 28.19 | 0.90 | 22.9 |
| DMRT – 8 – 8N | 1/2 | 12.70 | 1/2 | 0.41 | 10.41 | 13/16 | 20.6 | 1.02 | 25.91 | 1.42 | 36.07 | 1.30 | 33.00 | 0.90 | 22.9 |
| DMRT – 10 – 8N | 5/8 | 15.87 | 1/2 | 0.47 | 11.94 | 15/16 | 23.8 | 1.10 | 27.94 | 1.50 | 38.10 | 1.38 | 35.05 | 0.96 | 24.4 |
| DMRT – 12 – 12N | 3/4 | 19.05 | 3/4 | 0.62 | 15.75 | 1-1/16 | 27.0 | 1.17 | 29.72 | 1.57 | 39.88 | 1.45 | 36.83 | 0.96 | 24.5 |
“D” – Dimension is minimum opening – dimensions are for reference only, and are subject to change without notice.
