MOUNTING DIMENSIONS

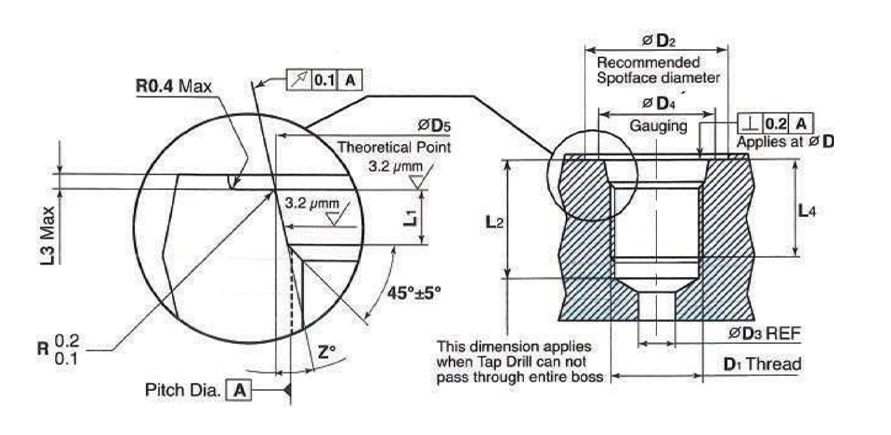

MOUNTING DIMENSIONS FOR O-SEAL CONNECTORS (SAE/MS)
TUBE O.D.		D1 THREADED SIZE	D2 MIN DIAMETER	D3 MIN DIAMETER	D4 MIN	D5 ± 0.05	L1 ± 0.02	L2 MIN	L3 MAX	L4 MIN FULL THREAD	z° ± 1°
IN	MM	IN	± 0.05	MM	MM	MM	MM	MM	MM	MM	MM
1/8	3.18	5/16 – 24 UNF – 2B	17	1.6	11	9.15	2.1	12	1.6	10	12
3/16	4.76	3/8 – 24 UNF – 2B	19	3.5	13	10.75	2.1	12	1.6	10	12
1/4	6.35	7/16 – 20 UNF – 2B	21	4.5	15	12.45	2.6	14	1.6	11.5	12
5/16	7.94	1/2 – 20 UNF – 2B	23	6	16	14.05	2.6	14	1.6	11.5	12
3/8	9.52	9/16 – 18 UNF – 2B	25	7.5	18	15.70	2.7	15.5	1.6	12.7	12
1/2	12.70	3/4 – 16 UNF – 2B	30	10	22	20.65	2.7	17.5	2.4	14.3	15
5/8	15.88	7/8 – 14 UNF – 2B	34	12.5	26	24	2.7	20	2.4	16.7	15
3/4	19.05	1 1/16 – 12 UNF – 2B	41	16	32	29.2	3.5	23	2.4	19	15
7/8	22.22	1 3/16 – 12 UN – 2B	45	18	35	32.4	3.5	23	2.4	19	15
1	25.40	1 5/16 – 12 UN – 2B	49	21	38	35.55	3.5	23	3.2	19	15

“D“ – Dimension is minimum opening – dimensions are for reference only, and are subject to change without notice.
