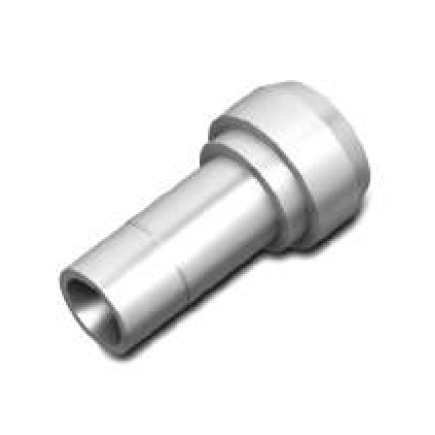

REDUCING PORT CONNECTOR – DRPC

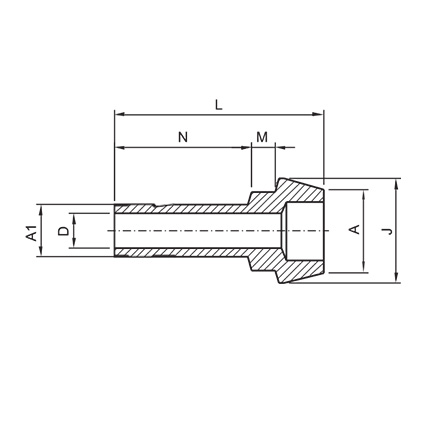

| CONNECTS TWO D-LOK PORTS (METRIC) | |||||||
| PART NUMBER | A TUBE O.D. | A1 TUBE O.D. | D | N | L | J | M |
| mm | mm | mm | mm | mm | mm | mm | |
| DRPC – 6M – 3M | 6 | 3 | 2.1 | 13.5 | 22.9 | 9.0 | 3.2 |
| DRPC – 8M – 6M | 8 | 6 | 4.0 | 15.7 | 24.7 | 11.0 | 3.1 |
| DRPC – 10M – 6M | 10 | 6 | 4.0 | 15.7 | 25.8 | 13.1 | 3.4 |
| DRPC – 10M – 8M | 10 | 8 | 5.6 | 16.8 | 26.1 | 13.1 | 3.1 |
| DRPC – 12M – 6M | 12 | 6 | 4.0 | 15.7 | 29.1 | 15.0 | 3.6 |
| DRPC – 12M – 8M | 12 | 8 | 5.6 | 16.8 | 30.1 | 15.0 | 3.4 |
| DRPC – 12M – 10M | 12 | 10 | 7.1 | 17.5 | 30.6 | 15.0 | 3.1 |
| DRPC – 16M – 10M | 16 | 10 | 8.8 | 23.1 | 37.5 | 19.0 | 3.4 |
| CONNECTS TWO D-LOK PORTS (INCH) | ||||||||||||||
| A TUBE O.D. | A1 TUBE O.D. | D | N | L | J | M | ||||||||
| in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | |
| DRPC – 2 – 1 | 1/8 | 3.17 | 1/16 | 1.58 | 0.03 | 0.75 | 0.36 | 9.14 | 0.72 | 18.3 | 0.24 | 6.15 | 0.10 | 2.56 |
| DRPC – 4 – 1 | 1/4 | 6.35 | 1/16 | 1.58 | 0.03 | 0.75 | 0.36 | 9.14 | 0.75 | 19.05 | 0.37 | 9.40 | 0.15 | 3.81 |
| DRPC – 4 – 2 | 1/4 | 6.35 | 1/8 | 3.17 | 0.09 | 2.20 | 0.54 | 13.71 | 0.90 | 22.86 | 0.37 | 9.40 | 0.12 | 3.05 |
| DRPC – 6 – 2 | 3/8 | 9.52 | 1/8 | 3.17 | 0.09 | 2.20 | 0.54 | 13.71 | 0.92 | 23.37 | 0.50 | 12.7 | 0.15 | 3.76 |
| DRPC – 6 – 4 | 3/8 | 9.52 | 1/4 | 6.35 | 0.17 | 4.20 | 0.64 | 16.26 | 1.00 | 25.4 | 0.50 | 12.7 | 0.13 | 3.24 |
| DRPC – 8 – 4 | 1/2 | 12.70 | 1/4 | 6.35 | 0.17 | 4.20 | 0.64 | 16.26 | 1.17 | 29.72 | 0.62 | 15.8 | 0.14 | 3.66 |
| DRPC – 8 – 6 | 1/2 | 12.70 | 3/8 | 9.52 | 0.27 | 6.85 | 0.70 | 17.78 | 1.21 | 30.73 | 0.62 | 15.8 | 0.12 | 3.15 |
| DRPC – 12 – 8 | 3/4 | 19.05 | 1/2 | 12.70 | 0.37 | 9.40 | 0.96 | 24.38 | 1.49 | 37.85 | 0.87 | 22.1 | 0.15 | 3.87 |
