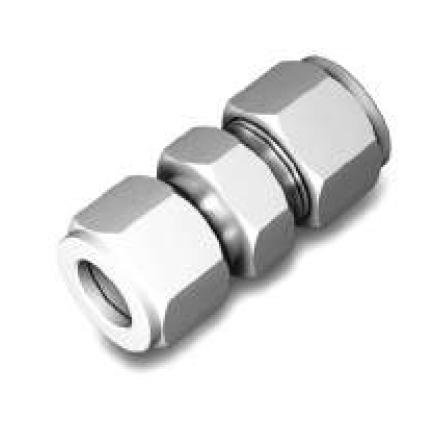

UNION - DU
UNION – DC

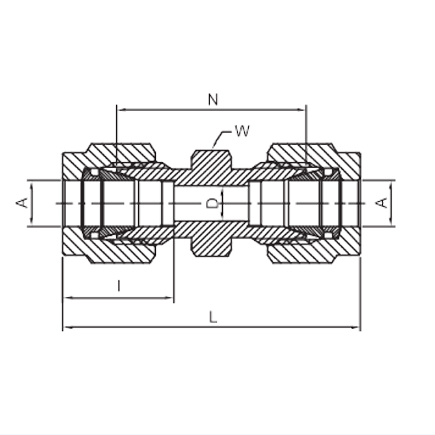

| TUBE (METRIC) TO TUBE (METRIC) | ||||||
| Part Number | A (Tube OD) | D | W (Hex Flat) | N | L | I |
| mm | mm | mm | mm | mm | mm | |
| DU – 2M | 2 | 1.7 | 12 | 22.4 | 35.6 | 12.9 |
| DU – 3M | 3 | 2.4 | 12 | 22.1 | 35.3 | 12.9 |
| DU – 4M | 4 | 2.4 | 12 | 24.1 | 37.3 | 13.7 |
| DU – 6M | 6 | 4.8 | 14 | 26.2 | 41.0 | 15.3 |
| DU – 8M | 8 | 6.4 | 15 | 28.2 | 43.2 | 16.2 |
| DU – 10M | 10 | 7.9 | 18 | 31.0 | 46.2 | 17.2 |
| DU – 12M | 12 | 9.5 | 22 | 31.0 | 51.2 | 22.8 |
| DU – 14M | 14 | 11.1 | 24 | 31.8 | 52.0 | 24.4 |
| DU – 15M | 15 | 11.9 | 24 | 31.8 | 52.0 | 24.4 |
| DU – 16M | 16 | 12.7 | 24 | 31.8 | 52.0 | 24.4 |
| DU – 18M | 18 | 15.1 | 27 | 33.3 | 53.5 | 24.4 |
| DU – 20M | 20 | 15.9 | 30 | 34.8 | 55.0 | 26.0 |
| DU – 22M | 22 | 18.3 | 30 | 34.8 | 55.0 | 26.0 |
| DU – 25M | 25 | 21.8 | 35 | 40.4 | 65.0 | 31.3 |
| DU – 28M | 28 | 21.8 | 41 | 43.4 | 85.0 | 36.6 |
| DU – 32M | 32 | 28.6 | 46 | 51.3 | 97.3 | 42.0 |
| DU – 38M | 38 | 33.7 | 55 | 58.4 | 113.6 | 49.4 |
| DU – 42M | 42 | 36.0 | 55 | 64.0 | 126.2 | 55.1 |
| TUBE (INCH) TO TUBE (INCH) | ||||||||||||
| Part Number | A Tube O.D. | D | W Hex. Flat | N | L | I | ||||||
| in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | |
| DU – 1 | 1/16 | 1.58 | 0.05 | 1.27 | 5/16 | 7.9 | 0.69 | 17.52 | 0.99 | 25.14 | 0.34 | 8.6 |
| DU – 2 | 1/8 | 3.17 | 0.09 | 2.28 | 7/16 | 11.1 | 0.88 | 22.35 | 1.40 | 35.56 | 0.50 | 12.7 |
| DU – 3 | 3/16 | 4.76 | 0.12 | 3.04 | 7/16 | 11.1 | 0.95 | 24.13 | 1.47 | 37.33 | 0.54 | 13.7 |
| DU – 4 | 1/4 | 6.35 | 0.19 | 4.82 | 1/2 | 12.7 | 1.03 | 26.16 | 1.61 | 40.89 | 0.60 | 15.3 |
| DU – 5 | 5/16 | 7.93 | 0.25 | 6.35 | 9/16 | 14.3 | 1.11 | 28.2 | 1.69 | 42.90 | 0.64 | 16.3 |
| DU – 6 | 3/8 | 9.52 | 0.28 | 7.11 | 5/8 | 15.9 | 1.19 | 30.22 | 1.77 | 44.95 | 0.66 | 16.9 |
| DU – 8 | 1/2 | 12.70 | 0.41 | 10.41 | 13/16 | 20.6 | 1.22 | 30.98 | 2.02 | 51.30 | 0.90 | 22.9 |
| DU – 10 | 5/8 | 15.87 | 0.50 | 12.70 | 15/16 | 23.8 | 1.25 | 31.75 | 2.05 | 52.07 | 0.96 | 24.4 |
| DU – 12 | 3/4 | 19.05 | 0.62 | 15.74 | 1-1/16 | 27.0 | 1.31 | 33.27 | 2.11 | 53.59 | 0.96 | 24.5 |
| DU – 14 | 7/8 | 22.22 | 0.72 | 18.28 | 1-3/16 | 30.2 | 1.38 | 35.05 | 2.17 | 55.11 | 1.02 | 25.9 |
| DU – 16 | 1 | 25.40 | 0.88 | 22.35 | 1-3/8 | 34.9 | 1.59 | 40.38 | 2.55 | 64.77 | 1.23 | 31.2 |
| DU – 20 | 1-1/4 | 31.75 | 1.09 | 27.70 | 1-3/4 | 44.5 | 1.89 | 48.00 | 3.63 | 92.20 | 1.62 | 41.2 |
| DU – 24 | 1-1/2 | 38.10 | 1.34 | 34.00 | 2-1/8 | 54.0 | 2.11 | 53.60 | 4.25 | 107.95 | 1.97 | 50.0 |
| DU – 32 | 2 | 50.80 | 1.81 | 45.97 | 2-3/4 | 69.9 | 2.94 | 74.67 | 5.88 | 149.35 | 2.66 | 67.6 |
